FUTABA  |  Varenummer: FPCGY760R

CGY760R Gyro FASSTest/T-FHSS Air Receiver

2.859,00 kr

Lagerstatus:

Ikke på lager

Afhentning:

Ikke på lager

Levering i morgen - Bestil inden:

Dag-til-dag levering

Dag-til-dag levering
  • Visa
  • Mastercard
  • MobilePay

Beskrivelse

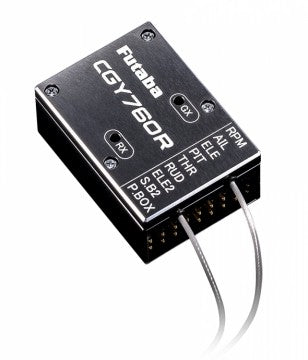

Futaba CGY760R - 3-Axis Gyro with built-in FASSTest/T-FHSS Air Recieiver

CGY760R 3 axis heading hold gyro included receiver and head speed governor for helicopter.

Note, this version does not include the GPB-1 unit (Gyro Programing Box)!

Features of CGY760R:
  • It is combined the receiver, the head speed governor and 3 axis heading hold gyro. So, the wiring processing is easy when it is installed.
  • It is successor of CGY750. Functions and setting parameters basically follow CGY750 Ver. 2.0.
  • Small and right weight. (size : 37.5 x 26.8 x 16.0 mm, weight : 20.2g)
  • It is the anodic oxidation coating on aluminum case. So the appearance is also luxurious.
  • There are screw holes for installing to the metal mount of helicopter at the bottom of the case.
  • The firmware update is available (CIU-2 or CIU-3 is necessary.)
  • The wireless setting of some parameters is available through trainer function of the transmitter connected with GPB-1.
  • 760 uSec swash servo (under planning) will be available at a later date.

Gyro section:
  • Advanced and adaptive PID control loop which is proved by CGY750.
  • Corresponds to various mounting directions.
Rudder (Yaw):
  • Digital (1520uSec / 760uSec) and Analog (1520uSec) servo are available.
  • 2 types of setting method, 3D and Sports.
  • Feed forward operation is implemented.
Aileron (Roll)，Elevator (Pitch):
  • 2 types of setting method, F3C and 3D.
  • Supports H3-90 / H3-120 / H3-140 / H4-00 / H4-45 swashplate types.
  • Digital (1520uSec / 760uSec*) and Analog (1520uSec) servo are available. (* 760uSec mode is for the future.)
Head speed governor:
  • Advanced and adaptive PID control loop which is proved by CGY750.
  • Capable of governing head speeds from 700 RPM to 4000 RPM.
  • Digital (1520uSec) and Analog (1520uSec) servo are available.
  • Governor or Revolution limiter mode selectable.
  • Cutting edge control algorithm provides more consistent RPM governing.
  • Revolution sensor is Compatible with the GV-1 and CGY750. The CGY760R also supports an optional back plate revolution sensor.
  • RPM data can be send to the transmitter. (Telemetry function)
Receiver section:
  • FASSTest (18CH mode / 12CH mode) and T-FHSS Air is available. (It is selectable on the GPB-1 unit)
  • Antenna diversity. (2 antennas are installed.)
  • Telemetry functions. (Battery voltage, S.BUS sensor connected to S.BUS2 port and RPM data)
  • ID-LINK method is same manner to other FASSTest or T-FHSS Air receivers.

GPB-1 (not included with this version):
Gyro Programing box for CGY760R

Features of GPB-1:
  • It is the program box for CGY760R. It is connected to the dedicated port on CGY760R.
  • 128 x 64 dots monochrome graphic LCD with backlit (same as T12K, T10J and T6K)
  • 4 edit push keys and beeper
  • The power is provided from CGY760R
  • After turning on, it take the setting parameters from the connected CGY760R and it memories them to nonvolatile memory.
  • The wireless setting of some parameters is available through trainer function of the transmitter connected to GPB-1 by the dedicated cable.
