FUTABA  |  Varenummer: FPMC960CR

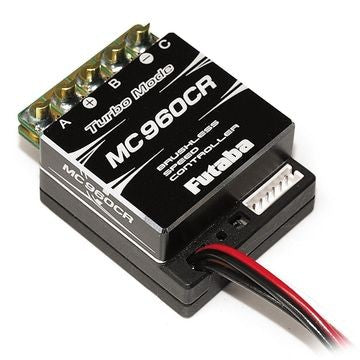

MC960CR ESC Brushless Car

930,00 kr

Lagerstatus:


Afhentning:

Ikke på lager

Levering i morgen - Bestil inden:

Dag-til-dag levering

Dag-til-dag levering
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling

Beskrivelse

Futaba MC960CR is a high frequency drive FET Speedcontroller developed for model electric cars. It is compact, light weight and uses a simple digital setting system. Ideal for competition use.

Features:
  • SMD MOSFETs with smallest internal resistance for minimal losses and maximum power amplifier with pure racing back Forward, reverse and brake operations are all linear
  • PWM frequency is performed by load adaptive
  • Motor lead angle can be set
  • Turbo mode
  • Upper case made from aluminum
  • Heat protector
  • Low voltage protection function
  • Power left on alarm function
  • Terminal is oxygen free copper
  • Data logging function
  • Serial communication function

Specifications:
  • Operating system forward and brake (resolution 255)
  • PWM frequency: Fwd and Reverse: 500Hz~30kHz/Initial value 3.0kHz~5.0kHz; Brake: 500Hz~30kHz/Initial value 1.0kHz
  • BEC voltage 6.0 or 7.4V/3.0A (Excl. input voltage below BEC voltage
  • Selection of the BEC voltage uses the CIU-2 of the option and the Link software
  • Current capacity (FET rating): Forward: 1440A (Momentary load 2080A) / Brake: 1440A
  • Case size: 32 x 29.5 x 17 mm (incl. protruding parts)
  • Weight: 37g (excl. connector cord and switch)
