Hobbywing  |  Varenummer: 30209201

Platinum Pro 130A ESC HV OPTO 6-14S V4

2.099,00 kr

Lagerstatus:

Ikke på lager

Afhentning:

Ikke på lager

Levering i morgen - Bestil inden:

Dag-til-dag levering

Dag-til-dag levering
  • Visa
  • Mastercard
  • MobilePay

Beskrivelse

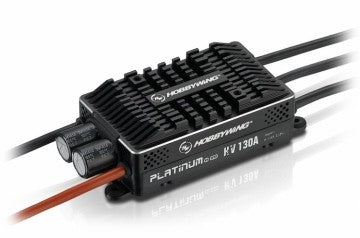

Hobbywing Platinum HV 130A Opto V4 ESC


  • High performance microprocessor for excellent motor speed-governing and super soft start-up
  • Microprocessor powered by independent DC regulator has better anti-interference performance, which greatly reduces the risk of losing control
  • DEO (Driving Efficiency Optimization) Technology adopted greatly improves throttle response & driving efficiency, reduces ESC temperature
  • Multiple flight modes: Fixed-wing, Helicopter (Linear Throttle), Helicopter (Elf Governor), Helicopter (Store Governor)
  • New governor program with adjustable governor parameter P/I brings excellent speed-governing effect, guarantees the stability of the propeller?s revs when the load changes dramatically
  • Data logging records the standardized RPM, minimum voltage and maximum temperature of the flight
  • "Restart in auto rotation" can manually interrupt the auto rotation and quickly restart the motor to avoid crashes caused by incorrect operations
  • Independent output port for RPM (that is: motor speed) signals
  • Separate programming port for ESC programming or parameter setting
  • WIFI module (sold separately) for programming the ESC wirelessly with your smart phone (iOS or Android)
  • Online data checking, ESC programming, firmware upgrade (Multifunction LCD program box or WIFI Express is needed) supported
  • Multiple protections like start-up protection, ESC thermal protection, capacitor thermal protection, over-current protection, overload protection, and throttle signal loss protection

Type:
  • Brushed/Brushless: Brushless
  • High Voltage/Regular: High Voltage

Specifications:
  • Continuos/Peak Current: 130A/160A
  • Input Voltage: 6-14S LiPo
  • BEC Output: No

Wires & Connectors:
  • Input Wires: 12AWG/150mm
  • Output Wires: 12AWG/100mm
  • Input Connectors: No
  • Output Connectors: No
(Note: All the wire length above is the original length not the length you see from the outside.)

ESC Programing via:
  • Transmitter: Not Supported
  • LED Program Card: Not Supported
  • LED Program Box: Not Supported
  • LCD Program Box: Supported
  • WiFi Module: Supported
  • Program Port: Separate Program Port
  • Firmware Upgrade: Supported

Size & Weight:
  • Size: 101 x 45.5 x 27 mm
  • Weight: 154 g

Rec. Applications:
  • 550-600 Class Heli (Main Blade: 550-690 mm)
  • .90-.140 Class Fixed-wing Airplane
  • 2m FAIF3A & 3D
  • EDF (with Diameter ?105mm)
