Hobbywing  |  Varenummer: 30112750

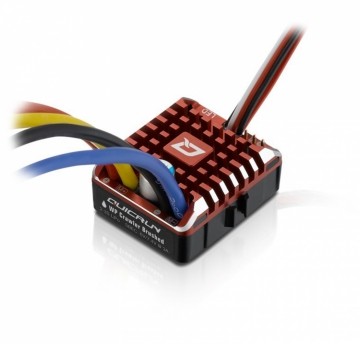

QuicRun WP Crawler Brushed ESC

354,00 kr

Lagerstatus:

Ikke på lager

Afhentning:

Ikke på lager

Levering i morgen - Bestil inden:

Dag-til-dag levering

Dag-til-dag levering
  • Visa
  • Mastercard
  • MobilePay

Beskrivelse

Special Design for 1/10th, 1/8th Crawlers
The reliable hardware combined with powerful software (features an array of programmable parameters like start force, drag brake rate, and etc.) creates an ideal power solution to 1/10th, 1/8th rock crawlers.

Adjustable PWM Frequency & Advanced DEO/Freewheeling Technology
The adjustable PWM frequency combined with advanced DEO/freewheeling technology guarantees users great throttle linearity and driving feel.

Applicable to All Weather Conditions
The waterproof and dust-proof design allows the WP-Crawler-Brushed to be used in all weather conditions without any issue of damage caused to the ESC from water or debris.

Excellent Braking Performance
Hobbywing's innovative, fine-tunable drag brake rate and adjustable drag brake and brake force greatly improve the brag brake and allow users to have the excellent braking performance.

Super Internal BEC
The built-in switch mode BEC with a maximum output of 6A and voltage adjustable between 6V and 7.4V allows the use of various standard servos, high voltage servos and other peripherals.

15 Programmable Parameters
The WP-Crawler-Brushed, which features 15 programmable parameter items, is applicable to various vehicles and tracks.

Separate Programming/Fan Port
The separate PRG/FAN port on the ESC can power an external fan to maximize cooling performance or connect the ESC to a LED program box for ESC programming.


A LED Program Box is Included
A standard, dedicated LED program box (included in the box) allows users to program the WP-Crawler-Brushed easily.




Specifications

  • Scale: 1/8th & 1/10th
  • Brushed/Brushless: Brushed
  • Waterproof: Yes
  • Cont./Peak Current: 80A/400A
  • Input Voltage: 2-3S Lipo/5-9 Cell NiMH
  • BEC Output: Switch Mode: 6V/7.4V@3A

Wires & Connectors

  • Input Wires: Red-14AWG-200mm*1 / Black-14AWG-200mm*1
  • Output Wires: Blue-14AWG-200mm*1 / Yellow-14AWG-200mm*1
  • Input Connectors: XT60 Connectors
  • Output Connectors: No

(Note: All the wire length above is the original length not the length you see from the outside.)

ESC Programing via

  • SET Button on ESC: Supported
  • LED Program Box: Supported
  • LCD Program Box: Not Supported
  • WiFi Module: Not Supported
  • Program Port: Separate Program Port

Firmware

  • Firmware Upgrade: Not Supported

Size & Weight

  • Size: 36.2x31.6x17.0mm
  • Weight: 58.5g (w/Wires)

Applications

  • Motors: Brushed Motor (540/550/775 size motors)
  • Vehicles: 1/8th,1/10th Rock Crawlers

KV Rating/T Count

  • Brushed Motor Limit with 2S LiPo/6S NiMH: =10T or RPM<30000@7.4V
  • Brushed Motor Limit with 3S LiPo/9S NiMH: =16T or RPM<20000@7.4V

Forsendelse

Vi benytter GLS.
Her er der følgende muligheder:

  • Levering til pakkeshop, fast rate uanset vægt og beløb: 47,00 kr.
  • Levering direkte til kundens adresse: 0-5 kg: 69 kr, 5-99 kg: 89 kr.

Leveringstid: 1 dag.
Der afsendes på bestillingsdagen frem til 17.00. Leveringstiden er gældende for både privat- og erhvervsadresser.

Nem og sikker betaling

Betalingsmetoder

  • Visa
  • Mastercard
  • MobilePay

Dine betalingsoplysninger behandles sikkert. Vi opbevarer ikke kreditkortoplysninger og har ingen adgang til dine kreditkortinformationer.

Hobbywing

QuicRun WP Crawler Brushed ESC

354,00 kr

Special Design for 1/10th, 1/8th Crawlers
The reliable hardware combined with powerful software (features an array of programmable parameters like start force, drag brake rate, and etc.) creates an ideal power solution to 1/10th, 1/8th rock crawlers.

Adjustable PWM Frequency & Advanced DEO/Freewheeling Technology
The adjustable PWM frequency combined with advanced DEO/freewheeling technology guarantees users great throttle linearity and driving feel.

Applicable to All Weather Conditions
The waterproof and dust-proof design allows the WP-Crawler-Brushed to be used in all weather conditions without any issue of damage caused to the ESC from water or debris.

Excellent Braking Performance
Hobbywing's innovative, fine-tunable drag brake rate and adjustable drag brake and brake force greatly improve the brag brake and allow users to have the excellent braking performance.

Super Internal BEC
The built-in switch mode BEC with a maximum output of 6A and voltage adjustable between 6V and 7.4V allows the use of various standard servos, high voltage servos and other peripherals.

15 Programmable Parameters
The WP-Crawler-Brushed, which features 15 programmable parameter items, is applicable to various vehicles and tracks.

Separate Programming/Fan Port
The separate PRG/FAN port on the ESC can power an external fan to maximize cooling performance or connect the ESC to a LED program box for ESC programming.


A LED Program Box is Included
A standard, dedicated LED program box (included in the box) allows users to program the WP-Crawler-Brushed easily.




Specifications

  • Scale: 1/8th & 1/10th
  • Brushed/Brushless: Brushed
  • Waterproof: Yes
  • Cont./Peak Current: 80A/400A
  • Input Voltage: 2-3S Lipo/5-9 Cell NiMH
  • BEC Output: Switch Mode: 6V/7.4V@3A

Wires & Connectors

  • Input Wires: Red-14AWG-200mm*1 / Black-14AWG-200mm*1
  • Output Wires: Blue-14AWG-200mm*1 / Yellow-14AWG-200mm*1
  • Input Connectors: XT60 Connectors
  • Output Connectors: No

(Note: All the wire length above is the original length not the length you see from the outside.)

ESC Programing via

  • SET Button on ESC: Supported
  • LED Program Box: Supported
  • LCD Program Box: Not Supported
  • WiFi Module: Not Supported
  • Program Port: Separate Program Port

Firmware

  • Firmware Upgrade: Not Supported

Size & Weight

  • Size: 36.2x31.6x17.0mm
  • Weight: 58.5g (w/Wires)

Applications

  • Motors: Brushed Motor (540/550/775 size motors)
  • Vehicles: 1/8th,1/10th Rock Crawlers

KV Rating/T Count

  • Brushed Motor Limit with 2S LiPo/6S NiMH: =10T or RPM<30000@7.4V
  • Brushed Motor Limit with 3S LiPo/9S NiMH: =16T or RPM<20000@7.4V
