Hobbywing  |  Varenummer: HW30504003

Tunalyzer Brushless Motor Analyzer - 30504003

2.753,05 kr

Lagerstatus:

Ikke på lager

Afhentning:

Ikke på lager

Levering i morgen - Bestil inden:

Dag-til-dag levering

Dag-til-dag levering
  • Visa
  • Mastercard
  • MobilePay

Beskrivelse

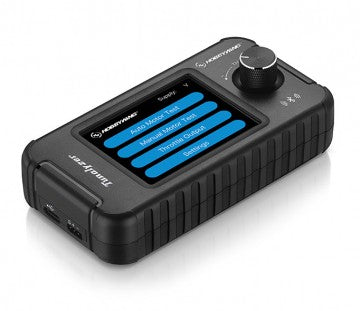

Hobbywing Tunalyzer


The next-generation tool for motor testing and tuning.
Tunalyzer has "Preset" voltages for this feature that must be used and the battery must be greater than the set voltage.


Manual Test Mode
The Tunalyzer can be used as a manual tester for simple bench-top checks. Forward and reverse with 100% linear throttle. The live output of the data is displayed as well.

Stable Voltage Regulator
The Tunalyzer has an internal voltage regulator to allow repeated tests at the same voltage as the battery pack discharges. This allows testing to be done on several motors for direct comparisons.

Tunalyzer has "Preset" voltages for this feature that must be used and the battery must be greater than the set voltage.

Multi-Function Control Dial
The dial on the face of the Tunalyzer is used for throttle control as well as external testing. PWM output is offered for use to test servos and ESC’s on the work bench.

RPM displayed in real time
The Tunalyzer provides a motor pole setting from 2 to 60 pole motors. This allows for an accurate and precise display of motor RPM in real-time.

3” Color Touch Screen Display
Ultra crisp and clear full-color touch display allows for an extremely quick and easy-to-learn interface.

OTA Tuning and Upgrades
The Tunalyzer can double as your ESC programmer device for simple bench-top ESC tuning. With the HW Link App, your favorite smart device can be used to connect via Bluetooth to the Tunalyzer.

Multiple motor types supported
Sensorless and Sensor motors can be tested. Virtually any pole count or style of a brushless motor can be tested with the Tunalyzer.
  • Multipolar Sensored Motors
  • Multipolar Sensorless Motors
Sensorless motor characteristics may differ from sensored motor results. The test data is only available in specific item. See the instruction manual for details.

Built-in Reverse Power Supply Protection Circuit, Strong Security
Built-in reverse polarity protection circuit. Equipment will not be damaged by an incorrect battery connection.

Specs:
  • Input Voltage: 6-16.8V (2-4S Lipo)
  • Maximum test current: 18A
  • Motor Type: Sensored & Sensorless Brushless Motor
  • Size: 122.8 x 64.6 x 39mm (with knob height)
  • Weight: 144g
  • Display: LCD color touch screen

Function:
  1. Measure motor Current / Kv value/Rpm, End-bell timing / Deviation, Rotor asymmetry, Hall signal deviation and motor temperature.
  2. Set and upgrade the esc (which can support the OTA Bluetooth module)
