Hobbywing  |  Varenummer: 30603000

UBEC 10A 2-6S

319,00 kr

Lagerstatus:

Ikke på lager

Afhentning:

Ikke på lager

Levering i morgen - Bestil inden:

Dag-til-dag levering

Dag-til-dag levering
  • Visa
  • Mastercard
  • MobilePay

Beskrivelse

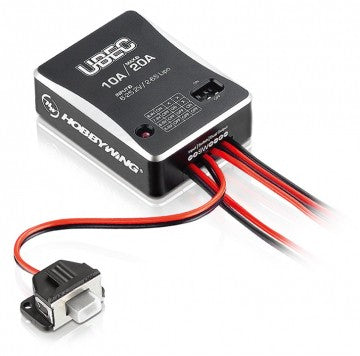

Hobbywing UBEC-10A (2-6S)

This UBEC is an external switching mode DC-DC regulator; it draws DC voltage from 2-6S LiPo battery, drops it to a voltage level that is suitable for your receivers and other electronic devices, and keeps providing the stable current output of up to 10Amp. As the UBEC has such a powerful output capability, so it?s particularly applicable for large helicopters and fixed-wing aircraft.

Features:
  • It adopted the advanced DC-DC regulator chip with conversion efficiency exceeds 90%
  • 4 options for the output voltage, applicable for all kinds of receivers/gyros/servos, etc
  • It owns BEC shoot-through protection, which prevent the input voltage from directly flowing to the output end and causing damages to receivers, servos and other electronic devices
  • It featured other protections like over-current protection, short-circuit protection (at the output end) and thermal protection make the use more safe and reliable
  • 2 cables are connected in parallel at the output end of the UBEC, allow larger current to flow into the receiver
  • It has one status LED, which lights up when the UBEC works normally
  • The external switch can turn on/off the UBEC easily
  • Exquisite aluminum case is helpful for heat dissipation & EMI (Electromagnetic Interference) reduction

Specs:
  • Input Voltage: 6V-25.2V (2-6S LiPo)
  • Output Voltage: 5.0V/6.0V/7.4V/8.4V
  • Continuous Current: 10A
  • Peak Current: 20A
  • Dimensions: 43.1 x 32.3 x 12.5mm
  • Weight: 36g

Forsendelse

Vi benytter GLS.
Her er der følgende muligheder:

  • Levering til pakkeshop, fast rate uanset vægt og beløb: 47,00 kr.
  • Levering direkte til kundens adresse: 0-5 kg: 69 kr, 5-99 kg: 89 kr.

Leveringstid: 1 dag.
Der afsendes på bestillingsdagen frem til 17.00. Leveringstiden er gældende for både privat- og erhvervsadresser.

Nem og sikker betaling

Betalingsmetoder

  • Visa
  • Mastercard
  • MobilePay

Dine betalingsoplysninger behandles sikkert. Vi opbevarer ikke kreditkortoplysninger og har ingen adgang til dine kreditkortinformationer.
