Hobbywing  |  Varenummer: HW38040300

Xrotor MicroCube FC och 45A 3-6S 4-in-1 ESC Combo* - 38040300

699,00 kr

Lagerstatus:

Ikke på lager

Afhentning:

Ikke på lager

Levering i morgen - Bestil inden:

Dag-til-dag levering

Dag-til-dag levering
  • Visa
  • Mastercard
  • MobilePay

Beskrivelse

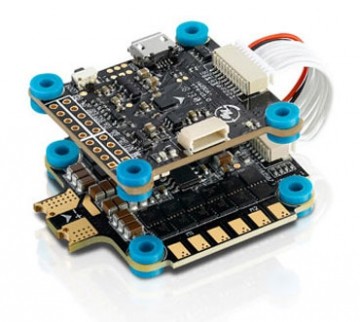

Hobbywing XRotor MicroCube FC & 45A 4in1 BLHeli32 6S ESC Combo

This new 4-in-1 ESC is designed for competition FPV racing - small in size and loaded with features. This combo set is also including the matching XRotor Micro-F4-G2 Flight Control unit.

Features:
  • High performance 32-bit microprocessor with the running frequency of up to 48MHz for excellent performance.
  • BLHeli_32 firmware is the third generation BLHeli, following base BLHeli and BLHeli-S.
  • All codes use damped light mode. Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling.
  • The code supports features to prevent sync loss. There are tunable parameters that can make the code run well even in the most demanding situations, although default settings will work
  • excellently in normal operating environments.
  • The code supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us) and Multishot (5-25us).
  • Dshot signaling is supported at any rate up to at least Dshot1200. The input signal is automatically detected by the ESC upon power up.
  • The code also supports a beacon functionality, where the ESC will start beeping after a given time of zero throttle. This can be very useful for finding lost crafts.
  • On board 10V &5V BEC , powering different accessories such as FC , VTx ,Camera and LED lights and etc.
  • Firmware: Hobbywing_XRotor_BLHeli_32 Version
  • ESC Programming: BLHeliSuite32
  • Stick Programming: Supported
  • DEO: Supported
  • Throttle Range Calibration: Supported
  • Oneshot125 Mode: Supported
  • Oneshot42 Mode: Supported
  • MultiShot Mode: Supported
  • DShot150/300/600/1200: Supported
  • Timing: Supported
  • Motor Rotation: Supported

ESC 4in1 Specifications:
  • Applications: 130-300mm FPVs
  • Size: 32.7 x 18.4 x 6.2 mm
  • Mounting holes: 30.5 x 30.5 mm
  • Weight: 11.5g
  • Cont./Peak Current: 4x 45A / 4x 60A
  • Input Voltage: 3-6S LiPo
  • BEC output: 5V@1.5A & 10V@1.5A
  • Input Wires: 12AWG 130 mm
  • Output Wires: No wires but solder tabs
  • Input Connectors: XT60 (w/ Wires Soldered on)
  • Output Connectors: No

XRotor Micro-F4-G2 Flight Control Unit Specs:
  • Compatible with (Multirotors): Quadcopter
  • Firmware: OMNIBUSF4SD
  • FC Programming: Supported
  • Programming via: Betaflight / Cleanflight-configurator or Others
  • Compatible with (Modes): PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, DShot1200 & Proshot1000 etc
  • Compatible with (Transmitters): PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF & SRXL etc
  • OSD: Built-in
  • Voltage Monitoring: Supported
  • Current Monitoring: Supported
  • External Buzzer: Supported
  • LED Control: Supported
  • BEC: No
  • USB Port: MicroUSB
  • Size: 36 x 36 mm
  • Mounting holes: 30.5 x 30.5 mm
  • Weight: 6g
  • Applications: 130-300mm FPVs
