Marka  |  Varenummer: MZR-2500

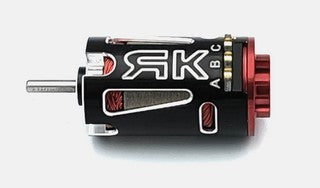

MARKA RACING MINI-Z V2 BRUSHLESS MOTOR 2500KV

249,00 kr

Lagerstatus:

Der er 3 styk på lager - order before 15:00, leveres den 09 maj (2 dage)

Afhentning:

Der er 3 styk på lager - Nørresundby

Levering i morgen - Bestil inden:

Dag-til-dag levering

Dag-til-dag levering
  • Visa
  • Mastercard
  • MobilePay

Beskrivelse

MARKA RACING MINI-Z V2 BRUSHLESS MOTOR 2500KV

Description

The Marka Racing Brushless Motor 2500kv have much-more torque and acceleration than others VE motor.
The Marka Motor heatsink can is annodized with black color and the Alu end-bell is annodized in red color.
In this way we tryed to keep Marka brand colors and offer a nice design.

Specifications
Scale: 1/28th Brushed/Brushless
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensorless
RPM: 23000 with 8.4V
KV Rating: 2469Kv
LiPo/Nimh Cells: 2S or 4xNimh 1.2V (4.8V)
No-load Current: 0.2A
Timing: Fix
Weight: 17.3gr

Aluminium Heatsink Can
- has the 15mm diameter same as normal brushed 130 motor.
- has holes in the front and lateral sides for a good ventilation that allows for a better heat dispersion
- in the front there are M2 screws holes that allows to fit the motor on all the types of Miniz motor mount and chassis
- has printed Marka logo on the lateral side and the Kv number to recognize the motor type

Stator
- high quality wires used for high temperature and longevity life
- high quality wires producing good torque and speed

Rotor
The rotor has the following size 6.0x13.5mm.
The rotor is interchangeable and is possible change with other size 6x(11.5mm-12.5mm-14.5mm-15.5mm-16.5mm).
The shaft is 2mm.

Bearing
JAPAN high quality duel ball Bearing included

Compatible
Fits in all Kyosho, PN Racing, GL Racing, Atomic, Xpower motor mount.
Fits in all Mini-Z chassis MR02, MR03, F1, AWD, GLR, GLA, GLF, BZ ect.

Wire Connetion
For connect to the ESC use 22AWG/0.35mm silicon wire Marka (MRK-3108)

Screws
To mount the motor on the motor mount, use the following screws:
On PN Racing motor mount use M2x4mm countersunk screws for aluminum/metal
On GL Racing (GLR, GLA e GLF) or Atomic (BZ) motor mount use M2x4mm button screws for aluminum/metal
The screws are not included
