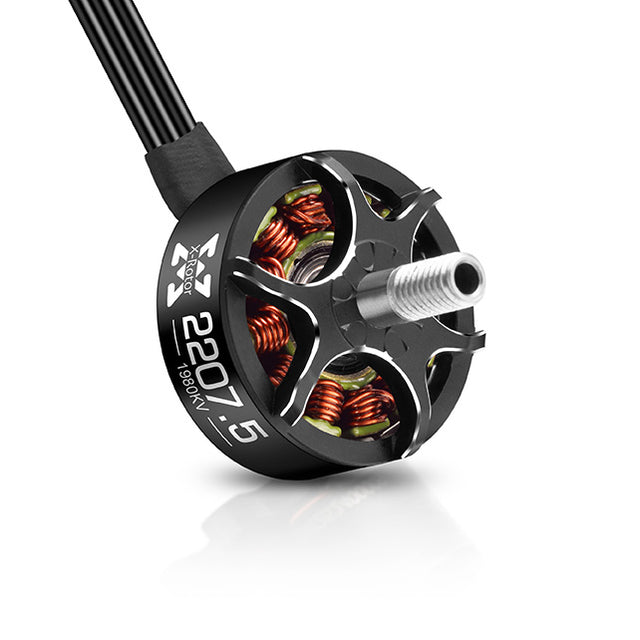

Xrotor FPV Motor 2207.5 1980kV 6S

Hobbywing 30418010 - Xrotor FPV Motor 2207.5 1980kV 6S

Features

• High-efficiency FPV motor with optimized electromagnetic design

• Stator constructed with high-quality silicon steel sheets and high-temperature (220 °C) enameled wire

• Precision MR105ZZ bearings for smooth operation

• Standard mounting pattern 4 × M3 at Ø 16 mm

• Suitable for props like HQ 4.9×3.7×3, GF51466, HQ5037

• 20 AWG wire leads, 150 mm length

• Lightweight design (38 g including wires)

Specifications

• Model: XRotor 2207.5SL – 1980KV

• Motor Size: Ø 28 × H 19.9 mm

• Slot / Pole: 12N14P

• Stator Size: Ø 22.5 × 7.6 mm

• Shaft Diameter: 5 mm + M5 thread

• Bearing: MR105ZZ

• Recommended Voltage: LiPo 6S

• No-Load Current: 3.2 A

• Max Current (3 s, ambient ≤ 25 °C): 49 A

• Max Power (3 s): 1166 W

• Max Thrust: 1868 g

• Phase Resistance (interphase): 65 mΩ

• Wire Spec: 20 AWG

• Wire Length: 150 mm

• Weight (with wires): 38 g
