Hobbywing  |  Varenummer: HW30415201

Hobbywing 30415201 - Skywalker 2820SL Motor D35.1x40mm 1000kV 77A/1140W/43s

357,29 kr

Lagerstatus:

Der er 2 styk på lager hos leverandør - bestil før 11:00, leveret d. 29 nov. (3 dage)

Afhentning:

Ikke på lager

På lager? Så afsender vi om:

Dag-til-dag levering

Dag-til-dag levering
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
  • Levering 1–2 hverdage
  • Fri fragt ved 600 kr.
  • E-mærket webshop
  • Nem og sikker betaling
  • Kan bestilles til eller afhentes i Nørresundby
     Se butiksoplysninger

Beskrivelse

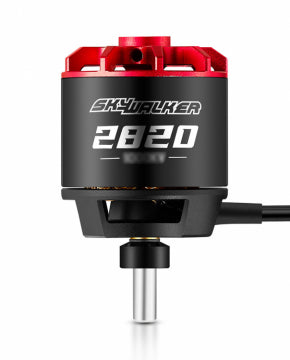

Hobbywing HW30415201 - SkyWalker 2820SL 1000Kv Outrunner

High power & High performance
The newly designed 2814, 2820, and 2826 fixed-wing motors have increased output power. Suitable for 800-2300g 3D fixed wings, gliders, sport fixed wings, etc. Suitable for many airplane applications!

Excellent heat dissipation design
The large hollow design, combined with the self-dissipating structure of the top cover, enhances the cooling capacity and prolongs the lifespan of the motor.

Higher dynamic balance requirements
Adopts an excellent production and assembly dynamic balance technology with high-quality bearing and high-precision CNC machining, it provides an extremely low dynamic balance of the rotor to reduce motor vibration and provide smoother operation.

Anti-loosening rotor design
After installing the copper pad and retainer spring on the core of the rotor shaft, the bushing and set screw help secure the rotor and improving the reliability of the motor.

Excellent materials
  • Top branded JNEH1200 silicon steel sheet, 0.2mm thick material, provides lower iron loss.
  • N48 strong magnetic arc magnetic steel design provides maximum torque output for the motor.
  • 180°C high temperature resistant enameled wire, enhances the high temperature resistance of the stator coil.
  • Silicone wire outlet, which is softer and easier to route than the traditional straight outlet silicone wire.



Included Accessories:
  • Propeller Adapter Assembly
  • Motor mounting plate
  • Screws

Specs:
  • Recommended Battery: 3-4S LiPo
  • KV Rating: 1000KV
  • No-load Current: 2.65A/14.8V
  • Winding Resistance: 21.4mO
  • Number of slot poles: 12N14P
  • Maximum continuous current: 77A/46s
  • Maximum continuous power: 1140W/46s
  • Motor Size: D35.1xL60mm
  • Motor Weight: 145g
  • Shaft Diameter: 5mm
  • Bearing model: 685ZZ(OD11xiD5xT5mm)
  • Phase cable: 16AWG
  • Cable length: 110mm
  • Connectors: 4mm Bullet
  • Recommended ESC: Skywalker 80A
  • Recommended Propellers: 6S: 10x5E, 12x6E or 13x6.5E
  • Clip mounting hole threads: D15mm-3xM2.5
  • Base threads: D19mm-2xM3 / D25mm-2xM3

Forsendelse

Vi benytter GLS.
Her er der følgende muligheder:

  • Levering til pakkeshop, fast rate uanset vægt og beløb: 47,00 kr.
  • Levering direkte til kundens adresse: 0-5 kg: 69 kr, 5-99 kg: 89 kr.

Leveringstid: 1 dag.
Der afsendes på bestillingsdagen frem til 17.00. Leveringstiden er gældende for både privat- og erhvervsadresser.

Nem og sikker betaling

Betalingsmetoder

  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling

Dine betalingsoplysninger behandles sikkert. Vi opbevarer ikke kreditkortoplysninger og har ingen adgang til dine kreditkortinformationer.

Hobbywing

Hobbywing 30415201 - Skywalker 2820SL Motor D35.1x40mm 1000kV 77A/1140W/43s

357,29 kr

Hobbywing HW30415201 - SkyWalker 2820SL 1000Kv Outrunner

High power & High performance
The newly designed 2814, 2820, and 2826 fixed-wing motors have increased output power. Suitable for 800-2300g 3D fixed wings, gliders, sport fixed wings, etc. Suitable for many airplane applications!

Excellent heat dissipation design
The large hollow design, combined with the self-dissipating structure of the top cover, enhances the cooling capacity and prolongs the lifespan of the motor.

Higher dynamic balance requirements
Adopts an excellent production and assembly dynamic balance technology with high-quality bearing and high-precision CNC machining, it provides an extremely low dynamic balance of the rotor to reduce motor vibration and provide smoother operation.

Anti-loosening rotor design
After installing the copper pad and retainer spring on the core of the rotor shaft, the bushing and set screw help secure the rotor and improving the reliability of the motor.

Excellent materials
  • Top branded JNEH1200 silicon steel sheet, 0.2mm thick material, provides lower iron loss.
  • N48 strong magnetic arc magnetic steel design provides maximum torque output for the motor.
  • 180°C high temperature resistant enameled wire, enhances the high temperature resistance of the stator coil.
  • Silicone wire outlet, which is softer and easier to route than the traditional straight outlet silicone wire.



Included Accessories:
  • Propeller Adapter Assembly
  • Motor mounting plate
  • Screws

Specs:
  • Recommended Battery: 3-4S LiPo
  • KV Rating: 1000KV
  • No-load Current: 2.65A/14.8V
  • Winding Resistance: 21.4mO
  • Number of slot poles: 12N14P
  • Maximum continuous current: 77A/46s
  • Maximum continuous power: 1140W/46s
  • Motor Size: D35.1xL60mm
  • Motor Weight: 145g
  • Shaft Diameter: 5mm
  • Bearing model: 685ZZ(OD11xiD5xT5mm)
  • Phase cable: 16AWG
  • Cable length: 110mm
  • Connectors: 4mm Bullet
  • Recommended ESC: Skywalker 80A
  • Recommended Propellers: 6S: 10x5E, 12x6E or 13x6.5E
  • Clip mounting hole threads: D15mm-3xM2.5
  • Base threads: D19mm-2xM3 / D25mm-2xM3
