Savöx  |  Varenummer: SAV-SB2265MG

Savöx SB-2265MG-BE - SB-2265MG Servo 13Kg 0,08s HV Brushless Metal Gear Low

545,26 kr

Lagerstatus:

På lager hos leverandør - bestil nu, leveres den 16 maj (7 dage)

Afhentning:

Der er 0 styk på lager - Nørresundby

Savöx SB-2265MG-BE - SB-2265MG Servo 13Kg 0,08s HV Brushless Metal Gear Low er restordret og sendes så snart det er tilbage på lager.

Levering i morgen - Bestil inden:

Dag-til-dag levering

Dag-til-dag levering
  • Visa
  • Mastercard
  • MobilePay

Beskrivelse

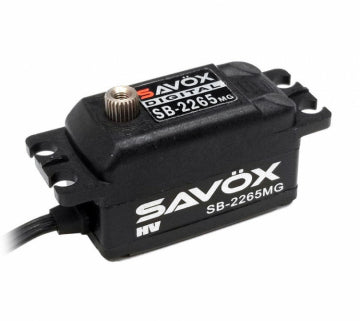

SAVÖX SB2265MG - Black Edition Low Profile High Voltage Brushless Digital Servo


  • Metal gear train ensures durability under harsh situations
  • Ideal for 1/10 on road cars requiring a high speed servo
  • Servo Type / Size: Low Profile
  • Application: 1/10 Cars
  • Motor Type: Brushless
  • Gear Material: Steel

Specifications:
  • Input Voltage: 6-8.4V
  • Torque @ 7.4v - 12.0kg
  • Speed @ 7.4v - 0.08 sec/60 deg
  • Dimensions L x W x H (mm): 40.8 x 20.2 x 25.4
  • Weight: 57g
  • Operating Temperature: -10° - 50°C
  • Running Current (no load): 180mA @6.0V, 220mA @7.4V
  • Stall Current (at locked): 3700mA @6.0 V, 4600mA @7.4V
  • Idle Current: 5mA @6.0V, 5mA @7.4V
  • Wire Length: 200 ± 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 90° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Brushless
