Savöx  |  Varenummer: SAV-SC1256TGBE

Savöx SC-1256TG BLACK EDIT - SC-125TG Servo 20kg 0,15s Coreless Black

423,25 kr

Lagerstatus:

Ikke på lager

Afhentning:

Ikke på lager

Levering i morgen - Bestil inden:

Dag-til-dag levering

Dag-til-dag levering
  • Visa
  • Mastercard
  • MobilePay

Beskrivelse

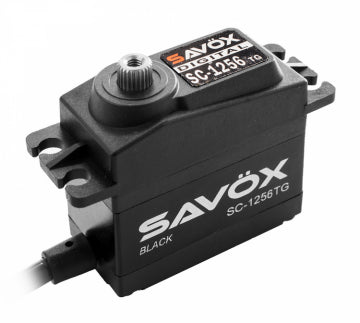

SAVÖX SC-1256TGBE - Titanium-Geared Digital Standard-Sized Servo


The SC1256TG servo is a great servo for those looking to replace a standard servo with one that has superior specifications.

Features:
  • Black Edition
  • Titanium gears ensure long life, durability and lighter weight
  • Aluminum middle case to help with cooler operating temperatures
  • Great replacement for RTR servos and other 1/10 off road vehicles

Specifications:
  • Torque @ 4.8V: 16kg/cm
  • Torque @ 6V: 20kg/cm
  • Speed @ 4.8V: 0.18 sec/60 deg
  • Speed @ 6V: 0.15 sec/60 deg
  • Dimensions L x W x H: 40.3 x 20.2 x 37.2mm
  • Weight: 52.4g

Technical Details:
  • Operating Temperature: -10° to 50°C
  • Running Current (no load): 100mA @4.8V, 120mA @6.0V
  • Stall Current (at locked): 4000mA @4.8V, 5000mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 250 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Coreless

Forsendelse

Vi benytter GLS.
Her er der følgende muligheder:

  • Levering til pakkeshop, fast rate uanset vægt og beløb: 47,00 kr.
  • Levering direkte til kundens adresse: 0-5 kg: 69 kr, 5-99 kg: 89 kr.

Leveringstid: 1 dag.
Der afsendes på bestillingsdagen frem til 17.00. Leveringstiden er gældende for både privat- og erhvervsadresser.
