Savox Servo SC-1268SG Servo 26Kg 0,11s HV Coreless Black Edition

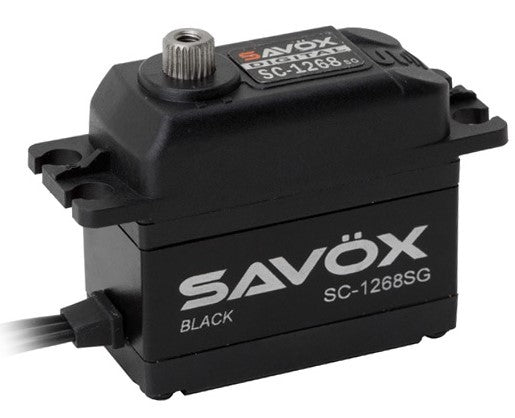

SAVÖX SC-1268SGBE - Steel-Geared High-Torque Digital Standard-Sized Servo

The SC-1268SG-BE is a high torque servo that delivers combining leading edge technology with super high 12 bit (4096) resolution along with it's strong output and durable gear train.

Features:

• High Voltage

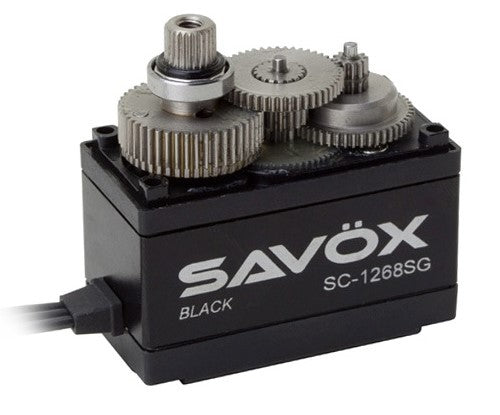

• Super strong and precision unique steel gears provide durability and survive heavy use
• Sleek black design with laser etching and a shorter 200mm black lead wire
• Ideal for 1/8 buggies, and other applications desiring high amounts of power

Specifications:

• Torque @6V: 15kg/cm
• Torque @7.4V: 25kg/cm
• Speed @6V: 0.13 sec/60 deg
• Speed @7.4V: 0.11 sec/60 deg

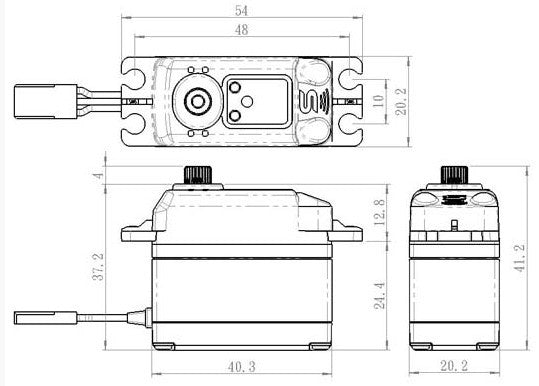

• Dimensions L x W x H: 40.3 x 20.2 x 37.2mm
• Weight: 62g

Technical Details:

• Operating Temperature: -10° to 50°C
• Running Current (no load): 100mA @4.8V, 120mA @6.0V, 150mA @7.4V
• Stall Current (at locked): 2500mA @4.8V, 3000mA @6.0V, 3500mA @7.4V
• Idle Current: 5mA @4.8V, 5mA @6.0V, 5mA @7.4V
• Wire Length: 200 ± 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 100° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 130° (900 → 2100 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Coreless
