SV-1272SG Servo 35Kg 0,10s HV Alu Coreless Steel Gear

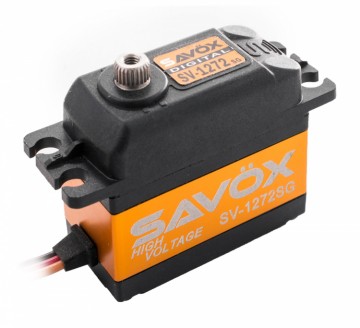

This is the Savox SV-1272SG Monster Torque, High Voltage Digital Servo. A very powerful servo in a standard case, the SV1272SG servo fits many applications.

Features:

• High Voltage
• Super strong and precision made unique steel gears provide durability and survive heavy use
• Extreme amount of torque in a standard case
• Ideal for large scale aircraft, 1/8 off road buggies and trucks and Monster Trucks

Specifications:

• Torque @6V: 23kg/cm
• Torque @7.4V: 30kg/cm
• Speed @6V: 0.13 sec/60 deg
• Speed @7.4V: 0.10 sec/60 deg

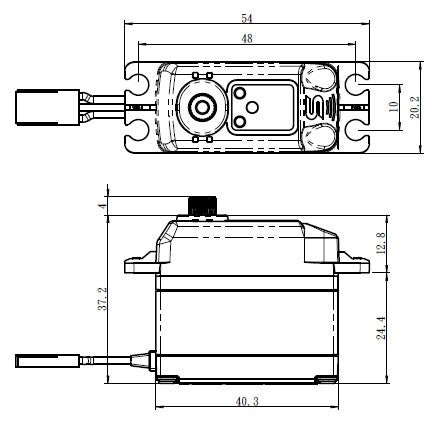

• Dimensions L x W x H: 40.3 x 20.2 x 37.2mm
• Weight: 63g

Technical Details:

• Operating Temperature: 14° - 122°F (-10° - 50°C)
• Running Current (no load): 120mA @6.0V, 150mA @7.4V
• Stall Current (at locked): 4000mA @6.0V, 5000mA @7.4V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 200 ± 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 100° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 130° (900 → 2100 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Coreless
