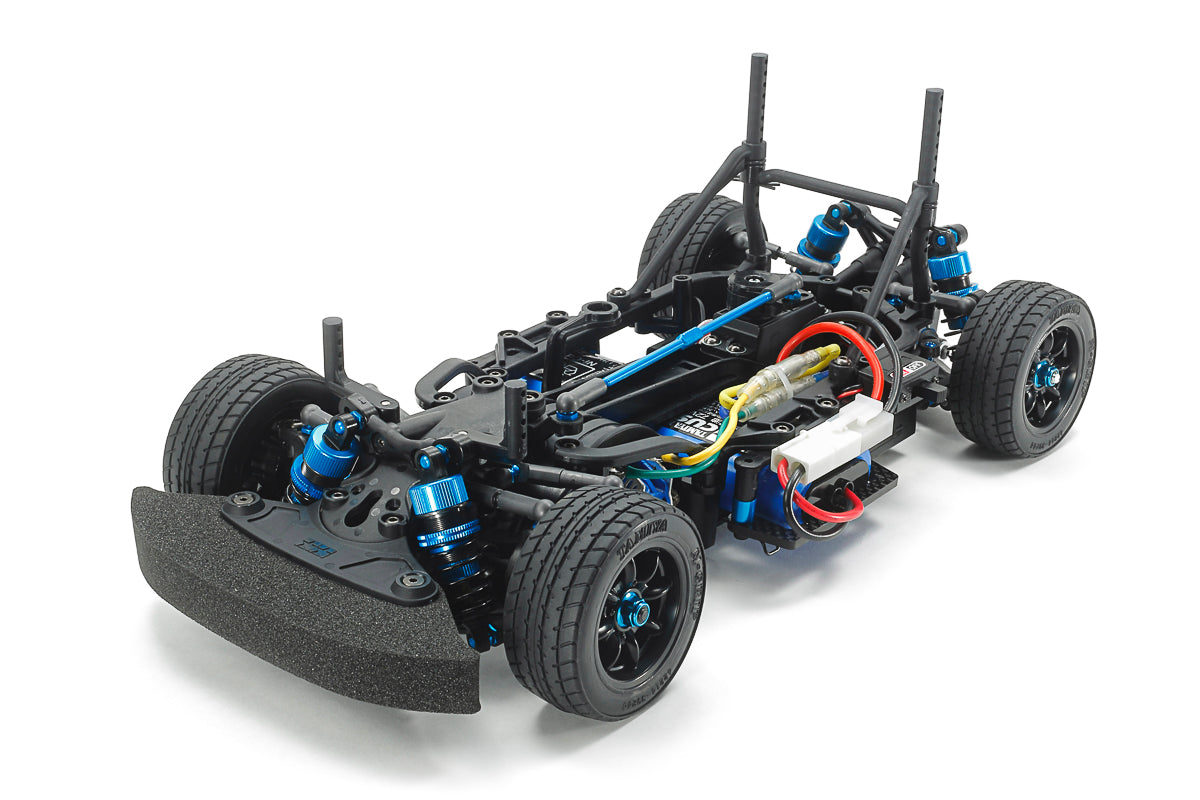

1/10 R/C M-07R Chassis Kit

Re-Issue / Limited Edition

The Hopped-Up M-07R This R/C FWD chassis assembly kit takes the cutting-edge M-07 Concept chassis and pairs it with a range of Tamiya Racing Factory (TRF) hand-picked option parts for a racing setup. It features a high-traction lower deck for a ground-hugging drive, plus carbon fiber battery holders, TRF special dampers, reinforced suspension arms and uprights, as well as rear stabilizer.

The result is super grip, even on low-traction surfaces. An efficient drivetrain includes oil-filled gear differentials, full ball bearings, double cardan drive shafts, aluminum cup joints, hard coated aluminum pinion gear and more.

M-07R Chassis Kit Tech Spec Images

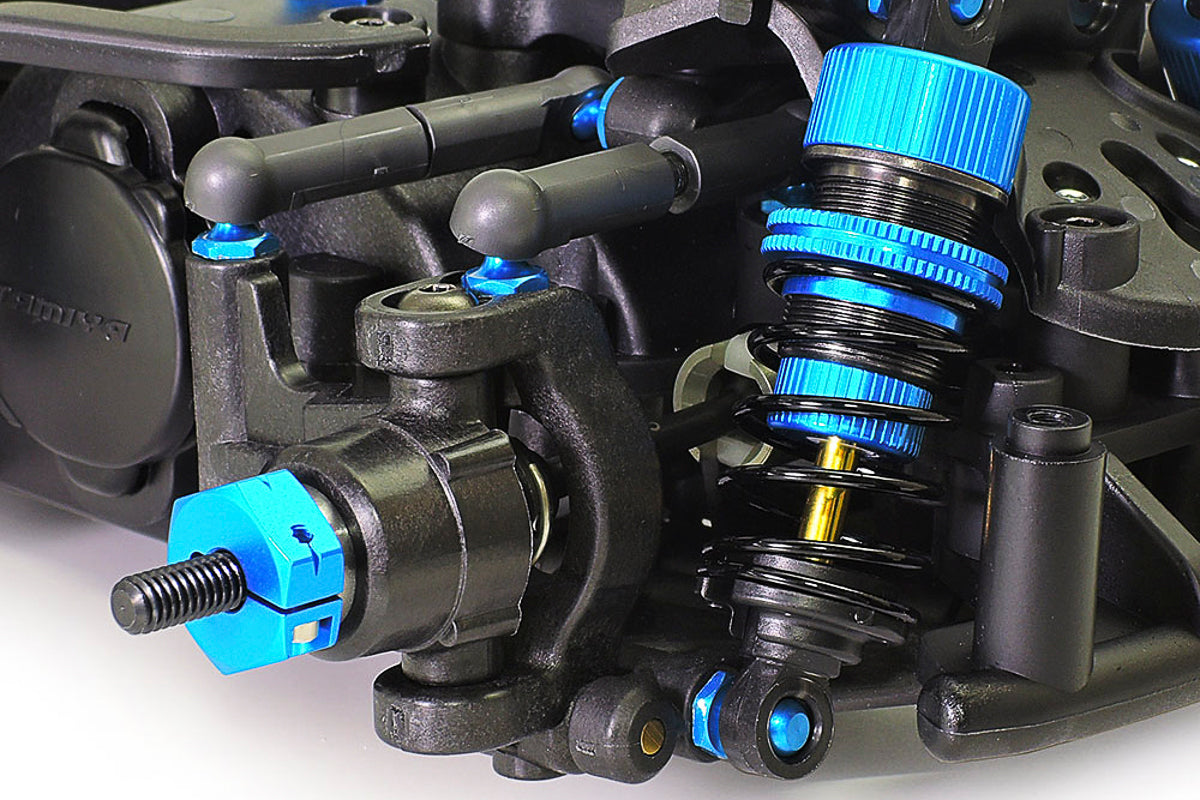

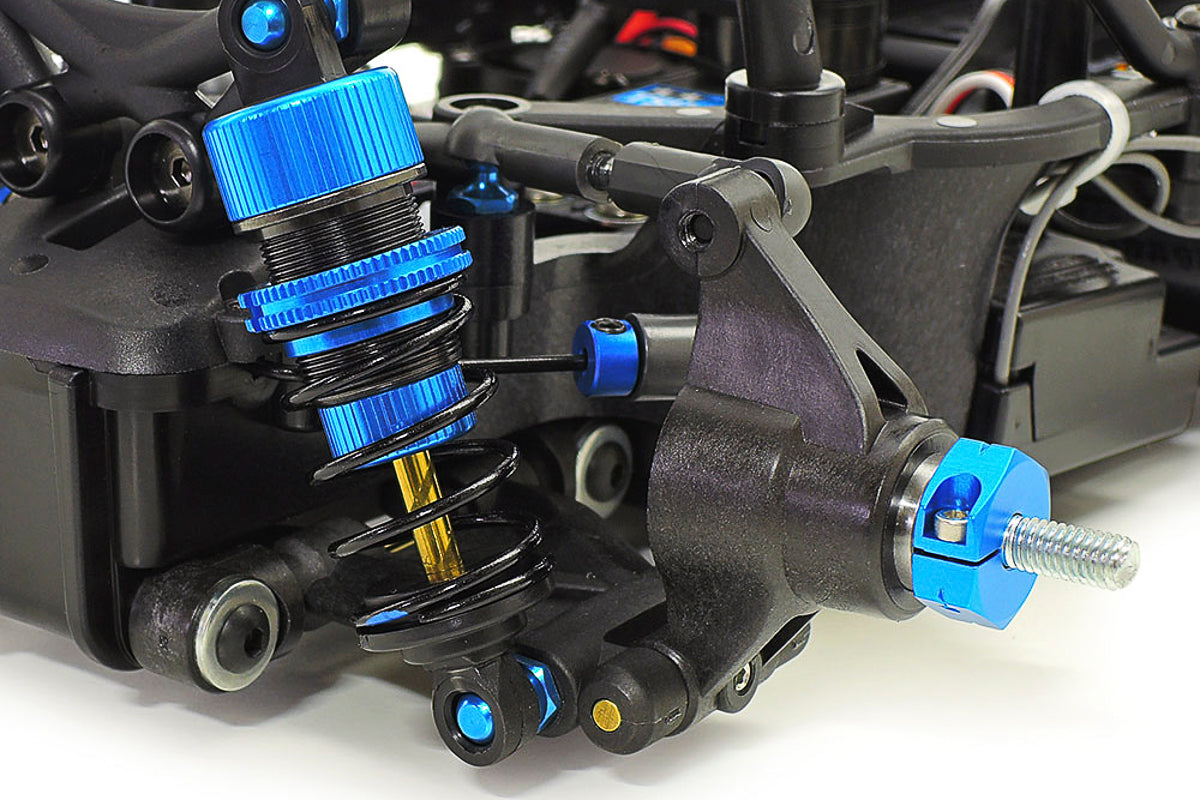

A close-up on the smooth front suspension, with TRF Special Dampers, double-cardan shafts and more!	Reinforced suspension arms and uprights give great durability. The kit includes a rear stabilizer.	The high-traction lower deck was made to extract just the right amount of flex, for great road holding.

Featured Components

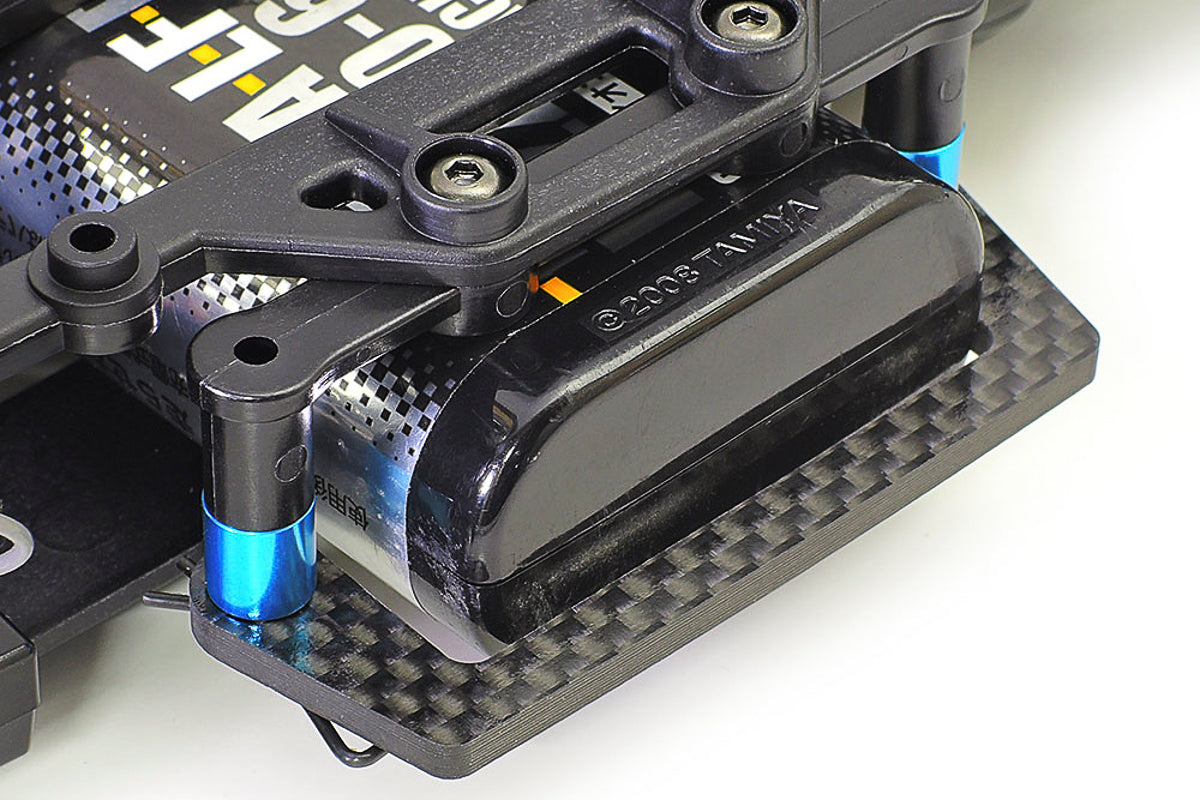

• Carbon fiber battery holder*
• Rear stabilizer
• TRF special dampers (hard black coating)
• Double-cardan drive shafts (33mm)
• High-traction lower deck
• Reinforced C parts (uprights)
• Reinforced D parts (suspension arms)
• 3x106mm aluminum turnbuckle shafts
• Aluminum joint cups
• Clamp-type aluminum wheel hubs (5mm)
• 2.6mm diameter titanium-coated shafts
• 46mm titanium-coated shafts
• 06 module aluminum pinion gear (20T)
• Full ball bearings
• Hi-torque servo saver (black)

• *dedicated component

Specifications

• Length: 332mm (including bumper)
• Width: 164mm
• Wheelbase: 225mm or 239mm (Selectable)
• Monocoque Frame
• Front-Midship Motor, Front-Wheel Drive
• Oil-Filled Gear Differential
• 3-Piece Steering Tie-Rod
• 4-Wheel Independent Double Wishbone Suspension
• TRF Special Dampers
• Gear Ratio = 5.78:1 using included 20T pinion gear (7.22:1 - 4.81:1 available with separately sold pinion gears)
• Requires an Electronic Speed Controller (sold separately)
