E-flite | Varenummer: EFLG320 Producent varenr.: EFLG320 | EAN: 605482009864

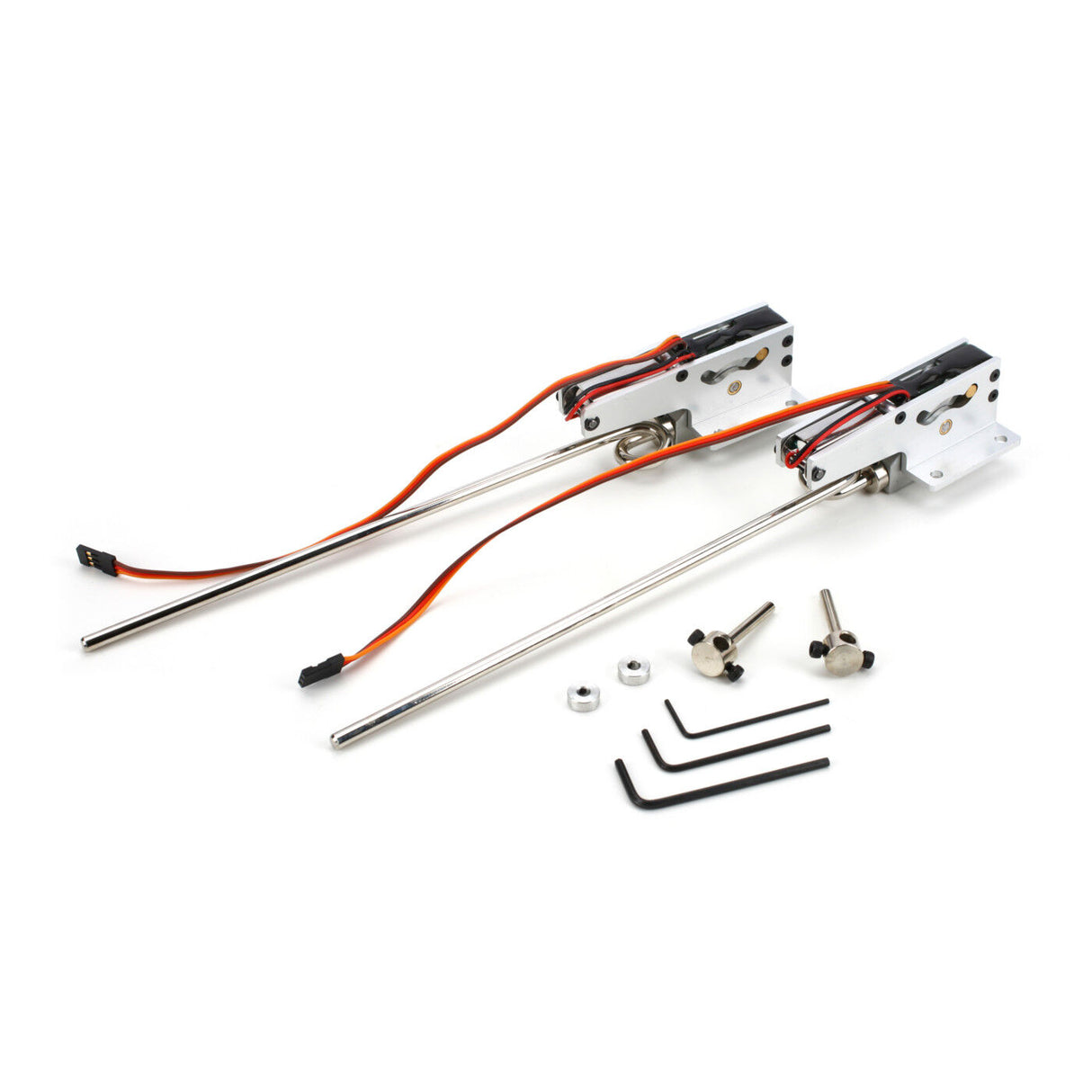

25-46 100 Degree Rotating Electric Retracts

Name: 25-46 100 Degree Rotating Electric Retracts
Brand: E-flite
SKU: EFLG320
Price: 1565.0 DKK
Availability: InStock

1.565,00 kr ~~1.645,00 kr~~

Lagerstatus:

På lager hos leverandør - bestil før kl. 06:00, leveret om 7-10 dage

Afhentning:

Ikke på lager

Levering 1–2 hverdage
Fragt fra 35 kr.
E-mærket webshop
Nem og sikker betaling
Kan bestilles til eller afhentes i Nørresundby
Se butiksoplysninger

Beskrivelse

Key Features

All-aluminum CNC-machined retract unit
Integrated electric motor with a micro PCB eliminating the need for a retract servo
Brass wheel collars and fully-bushed brass pivot points for smooth, trouble-free operation
Built-in over-current protection
Scale-appearance 100-degree retraction sweep and 90-degree rotation
Chrome-plated landing gear strut
Recommended for use in the Hangar 9^® F4U-1D Corsair 50 ARF, .46-.55 (HAN2590)
Strut diameter: 4mm

Specifications

Current draw
Idle: 5mA
Operating: 900mA (maximum)

Pulse width trigger points
Down: 1.331ms
Up: 1.690ms

Operation with FM and DSM
FM: 22ms frame rate, 5V signal
DSM: 20ms frame rate, 3.3V signal

Sequence time
@4.8V 2.75sec
@6.0V 2.50sec
@7.4V 2.25sec

Operating voltage range
4.8—7.4V

Aircraft weight
5.00–9.50 lb (2.25–4.30 kg)

Unit weight
Nose gear: 3.5 oz (99.5 g)
Main gear: 2.8 oz (79.5 g) each

Detailed Information

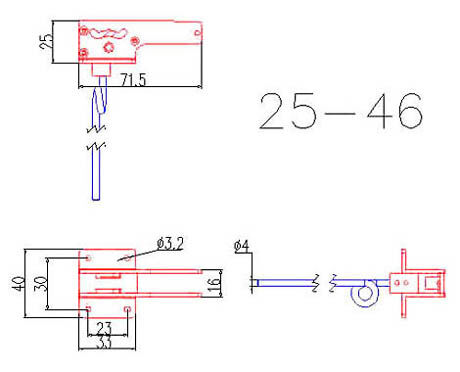

25-46 Size Main Retract Units (mm)

25 - 46 100 Degree Rotating Electric Retracts Diagram
