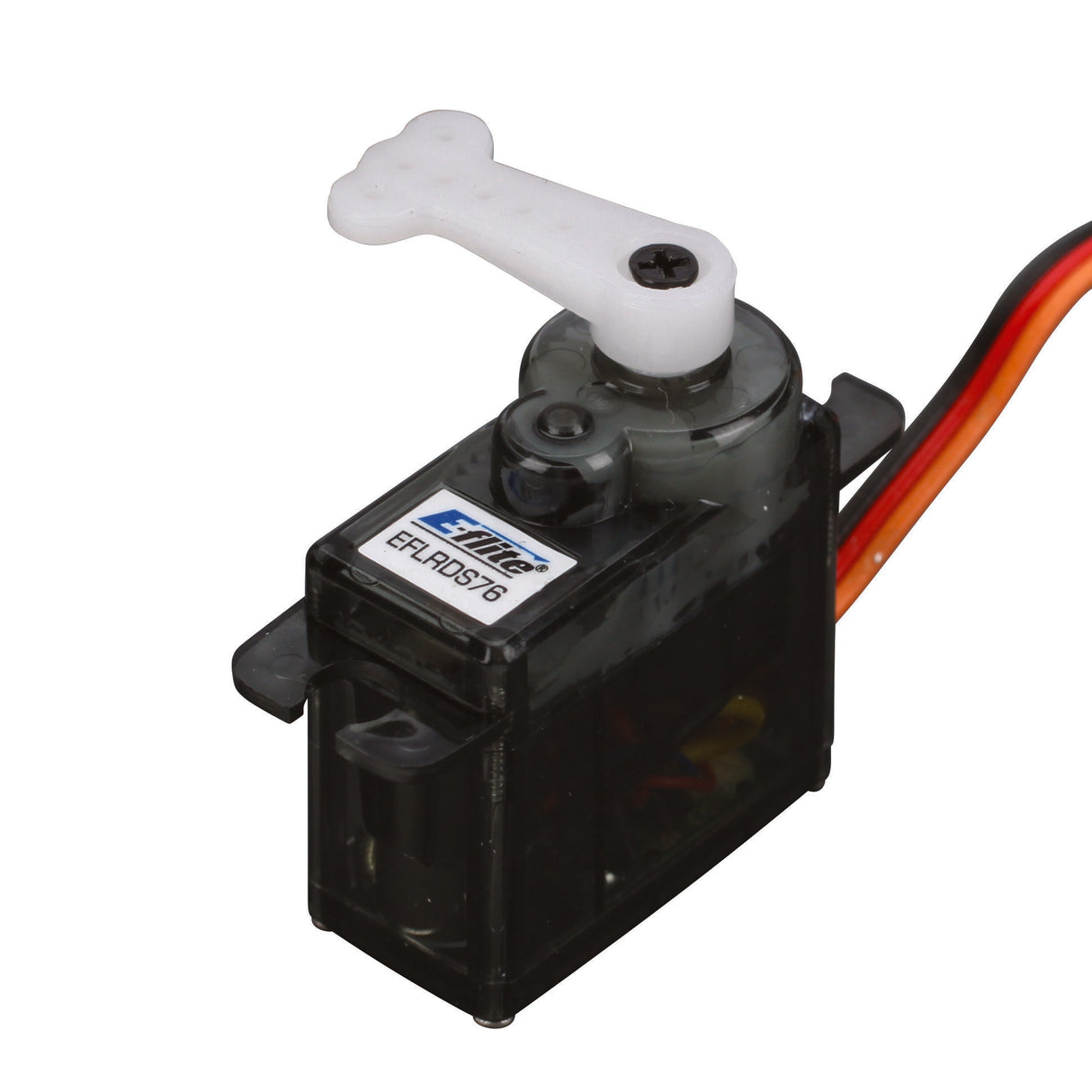

7.6-Gram DS76 Digital Sub-Micro Servo
45,00 kr
Pris per stk
/
Ikke tilgængelig
Lagerstatus:
Ikke på lagerAfhentning:
Ikke på lager
- Levering 1–2 hverdage
- Fri fragt ved 600 kr.
-
E-mærket webshop
- Nem og sikker betaling
-
Kan bestilles til eller afhentes i Nørresundby
Se butiksoplysninger
Beskrivelse
Beskrivelse
Key Features
- Digital amplifier for superior accuracy, response and holding torque
- High speed, .11 sec @ 60° @ 4.8V for quick control response
- High torque, 24.2 oz-in (1.75 kg-cm) @ 4.8V
- Precise Centering - less than 1°
- Lightweight, just 7.6 grams
- Universal connector compatible with major brand receivers

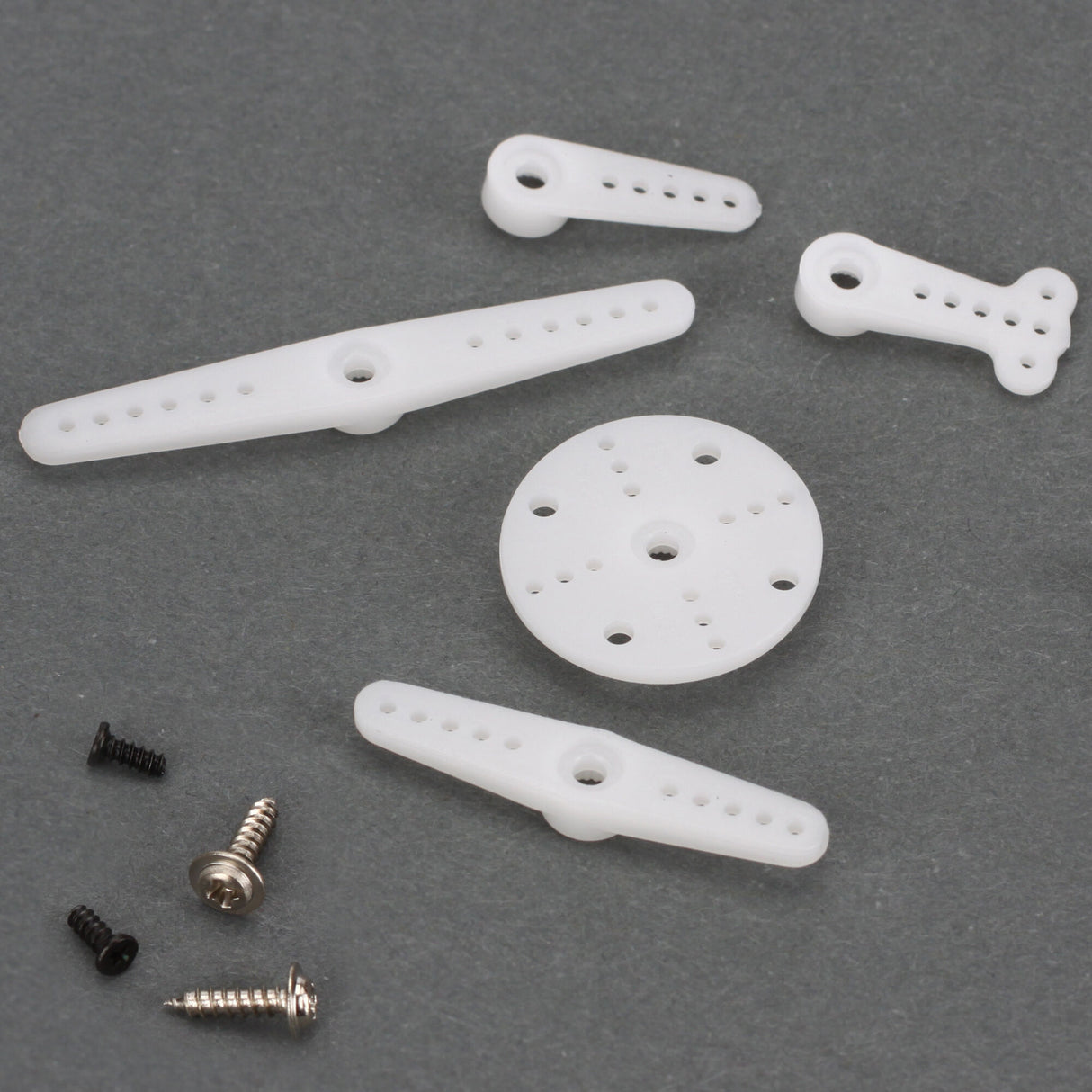

- Includes complete mounting hardware
- Includes multiple servo arms including an extra-long 3D servo arm for extreme throws
Overview
Digital high speed, high torque, precise centering servo is perfect for electric, park flyer, and high-performance 3D models, micro and mini electric helicopters, hand launch gliders. Replacement servo for the Blade 450 3D Heli.
| Current Draw Idle | 27mA @ 4.8V |
| Current Draw Stall | 473mA @ 4.8V |

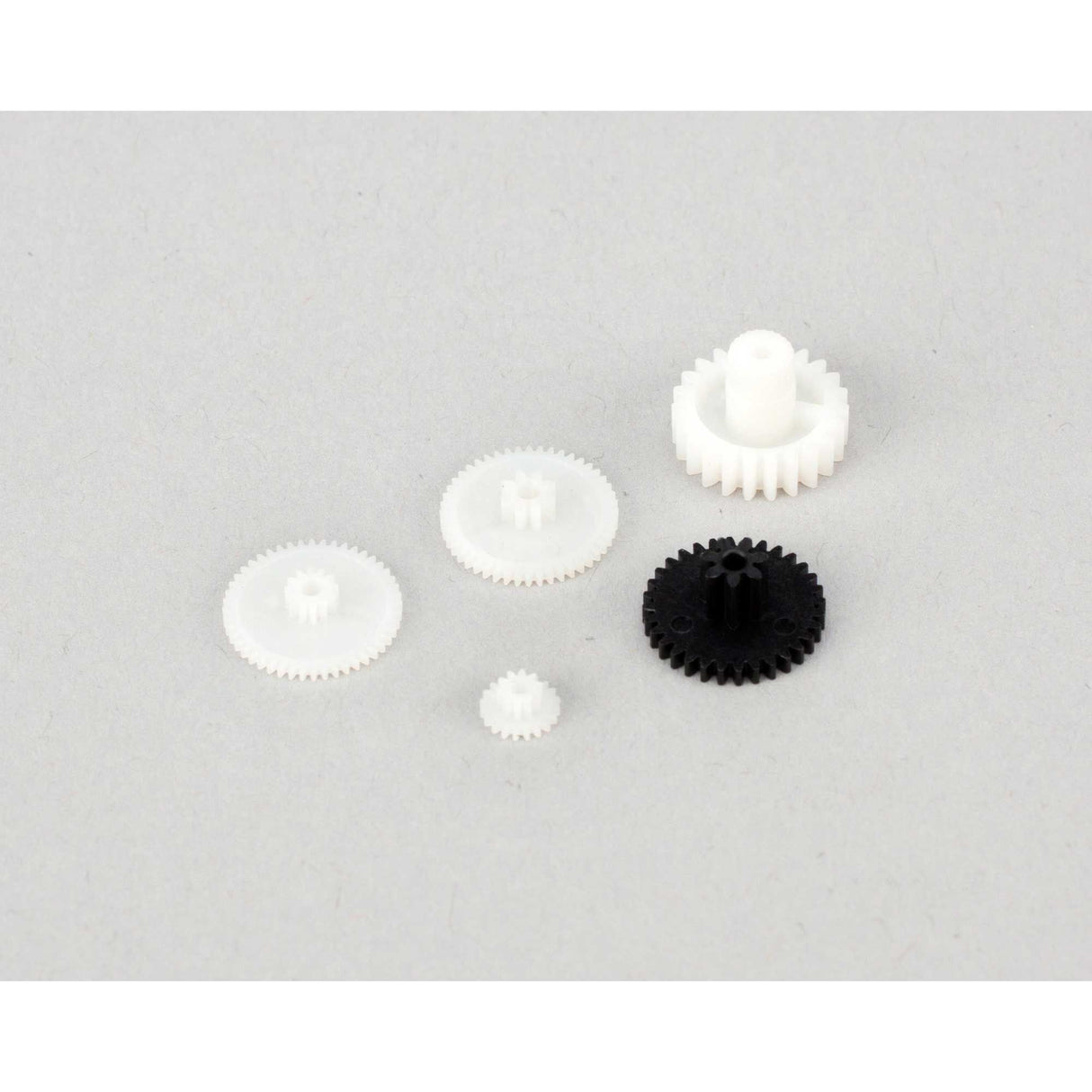

| Gear Type | Plastic |
| Maximum Servo Torque | 24.2 oz-in (1.75kg-cm) @ 4.8V; 28.0 oz-in (2.00kg-cm) @ 6.0V |
| Servo Speed Range | 0.11 sec/60 deg @ 4.8V; 0.09 sec/60 deg @ 6.0V |
| Servo Torque Range | 20-39 oz-in |
| Motor Type | Coreless |
| Servo Operating Voltage | 4.8 - 6.0V |
| Servo Size Category | Sub-Micro |
| Servo Type | Digital |
| Application | Airplane |
| Bearings or Bushings | Bearings |
| Digital_Analog | Digital |
| Gear Material | Nylon |
| Max Servo Speed | .09 |
| Max Servo Torque | 28 |
| Motor Type | Brushed |
| Servo - Connector | Z-Connector |
| Servo Size | Sub-Micro |
| Servo - Wire Length | 178 |
| Smart Compatible | N |
