MONSTER 2 1/8TH 25V ESC WATERPROOF WITH SENSORED 2200KV MOTOR

Brute Power and Sheer Stamina!

Mamba Monster 2 is capable of 2S LiPo to a maximum of 6S LiPo. It's also waterproof*, so you can run your vehicle across the morning dew, through soggy snow, or just about anywhere else you?d be interested in running a 1/8 scale RC buggy or truck. It features an easy-access case allowing you to replace fans quickly, if necessary. Additionally, Mamba Monster 2 features solder posts, so changing battery wire length and direction is simple for an even more custom install.

• Waterproof : Yes
• Telemetry Capable : No
• Data Logging : No
• Auxiliary Wire : No
• Minimum Input Voltage : 2S
• Maximum Input Voltage : 6S
• Sensored Capable : No

Powerful Combination

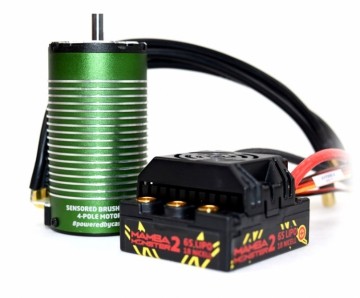

This combo includes the Mamba Monster 2 controller and the Castle 1515-2200Kv sensored** motor, which features:

• High quality oversized NMB bearings
• Sintered neodymium magnets
• Superior electromagnetic design
• Replaceable motor wires via Gold-Plated Solder Tabs

The included 1515-2200kv sensored** motor is intended for up to 6s operation in vehicles weighing less than 6.8 kg.

Package Includes:

• Mamba Monster 2 Electronic Speed Controller
• 1515-2200kv sensored** brushless motor
• Driver's Ed and Quick Start Guides
• Castle decal sheet

*Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.

** Sensored capabilities of the motor cannot be utilized with the Mamba Monster 2. If you require sensored operation you will need a sensored ESC like the Mamba Monster X. The Mamba Monster X paired with the same motor can be found here.

Technical Specs

Controller:

• Input Voltage Range - MIN: 2S LiPo - MAX: 6S LiPo (25.2V)
• BEC Specifications - Adjustable: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V
• Operating Environment: Waterproof* design allows for use in nearly any environment.
• Brake: Proportional
• Reversible: Yes, but may be disabled for racing.
• On/Off Switch: Yes
• Cooling Fan: Yes, factory equipped (30 mm), fully removable** (see Product Use Statements below)
• Size - Length: 53 mm - Width: 49 mm - Height: 36.4 mm
• Weight (with no battery connector): 111 g
• Connectors: 6.5 mm female bullets for motor connection.
• Items Needed for Operation: Battery Connector required; Deans Ultra Plugs, Traxxas Power Connectors, E-Flite EC5, or 6.5mm Castle Connectors are recommended.
• Product Use Statements: *Although Mamba Monster X and Castle brushless motors are waterproof, they are not intended for operation while completely submerged in liquid. They can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC and motor with clean water after exposure to corrosives or dirt. While the motor and controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.

**The cooling fan must be removed prior to driving in wet conditions. It is not waterproof.

• Recommended Motors: Combo includes Neu-Castle 1515 2200Kv: Max Cells: 6s Lipo or 16 NiMH
• Application Guidelines: Intended for up to 6S (25.2 Volt) operation in vehicles weighing less than 15 lbs, with batteries, ready-to-run.
• Max. Recommended Vehicle Weight: Less than 6.8kg with batteries, ready-to-run
• Programmability: Fully programmable Castle feature set using Castle Link USB adapter and freely downloadable Castle Link Windows software.
• Telemetry Link Capable: Yes

Tech Notes:

• Mamba Monster X setups frequently hit 100+ amps in peaks and not all LiPos are created equal. Surge ratings should never be used to determine a pack's suitability for a brushless application. Recommended battery capacity for 1/8:th scale vehicles is 5000mAh. We recommend using 30C continuous discharge or higher LiPo batteries (or high quality 25C batteries such as Traxxas
