Sub-Receiver R70SR - Dual RX Link System

Product Info:

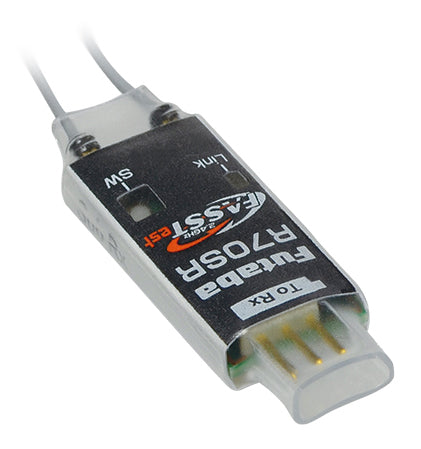

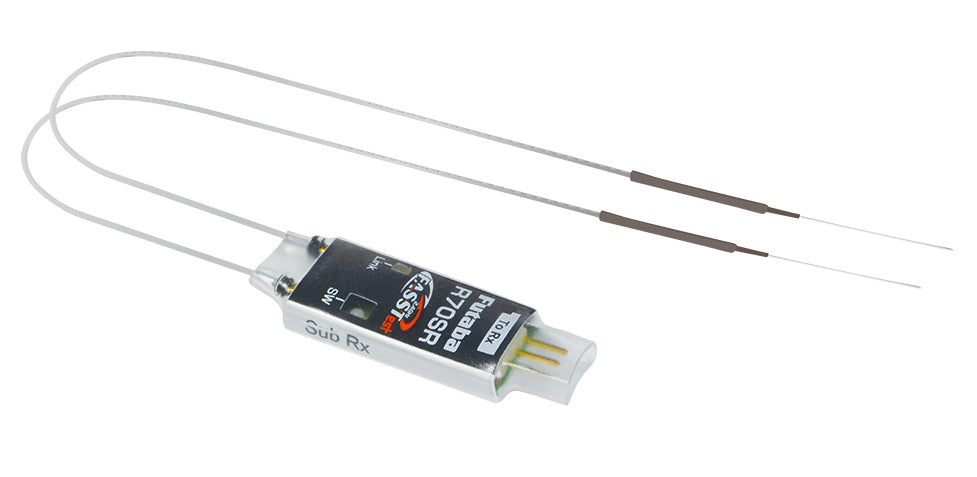

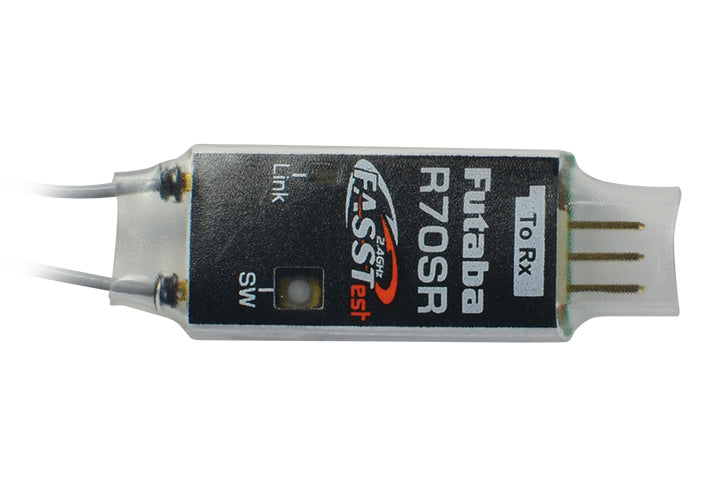

Futaba R70SR - Dedicated sub-receiver for Dual RX Link systems

Slim sub-receiver designed specifically for Dual RX-Link systems.

It achieves a compact and lightweight design while incorporating a diversity antenna. Its slender shape (15mm wide) makes it easy to mount in narrow spaces.

Furthermore, the adoption of a diversity antenna system ensures more stable reception of radio waves from the transmitter.

Specs:

• FASSTest 2.4GHz method (26ch/18ch/12ch mode)
• Dual RX-Link System
• Dedicated Sub-Receiver
• For use with sub-receivers only (*Note 1)
• For receiving only (Note 2)
• Antenna: Diversity system
• Size: 15x43x5mm
• Weight: 3.9g
• Usable voltage range: 3.5 to 8.4V
• Connection port shape: Standard connector

*Note 1: The R70SR cannot be used to operate the servo alone.

• 　This product must be used in combination with the R72xxSB/R73xxxSB series receivers, DLPH-2/3, and CGY770R.
• 　Previous software versions cannot recognize the R70SR.

However, the R72xxSB, R73xxSB series, DLPH-2, and CGY770R require a software update, as follows:

• R7314SB: Ver. 1.3 and later
• R7208SB/7308SB: Ver. 2.3 and later
• R7206SB/7306SB: Ver. 1.3 or later
• R7201SB/7301SB: Ver. 1.4 or later
• DLPH-2: Version 1.2 or later (DLPH-3 can be used as is. DLPH-1 is not supported.)
• CGY770R: Ver. 1.4 or later
• FDLS-1: Not compatible

*Note 2: The R70SR is a receiver-only device and does not have telemetry functionality.

*Note 3: The main receiver and connection cable for the DLPH series are sold separately.
