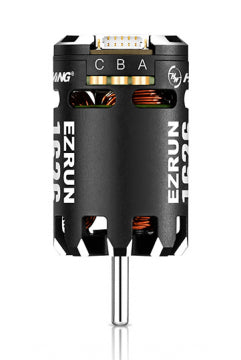

Hobbywing 30402654 - Motor EzRun 1626SD-5000kV BL 1/28

Hobbywing HW30402654 - EZRUN 1626SD-5000KV

EZRUN 1626
The first motor from Hobbywing is specifically designed for high-power 1/28th scale builders.

Features:

• Specially designed for 1/28 mini car,when matched with Hobbywing EZRUN MINI28 esc, it has perfect compatibility, and provides better performance and more delicate manipulating feel.
• The front and rear ends of the motor are designed with large openings structure to provide better heat dissipation for the motor.
• Built-in high-precision Hall sensor combined with the high precision and balanced rotor to ensure excellent linearity of the motor.
• The internal PCB is a 4-layer board, and the ABC wiring position is reinforced by punching holes, prevent the soldering spot from falling off after multiple soldering.

More Power!
When used with the EzRun Mini28 ESC, timing advance can be used to increase top speeds drastically. Small or large changes can be made for major on-demand power needs.

Precision Response
Zero cogging, consistent torque, and excellent low-speed response give an amazing feel and drive ability. The use of high-precision sensors ensures the ESC will be able to provide the best feel for the drivers.

EzRun 1626SD 5000kV Specs:

• KV: 5000
• Poles: 2
• LiPo: 2s
• No Load Current: 0.5A
• Diameter: 16mm
• Case Length: 26mm
• Shaft Dia: 2mm
• Shaft Length: 8.5mm
• Bearing Size: OD5 x ID2 x T2.5mm
• Weight: 18g
• Application: 1/28 Mini
