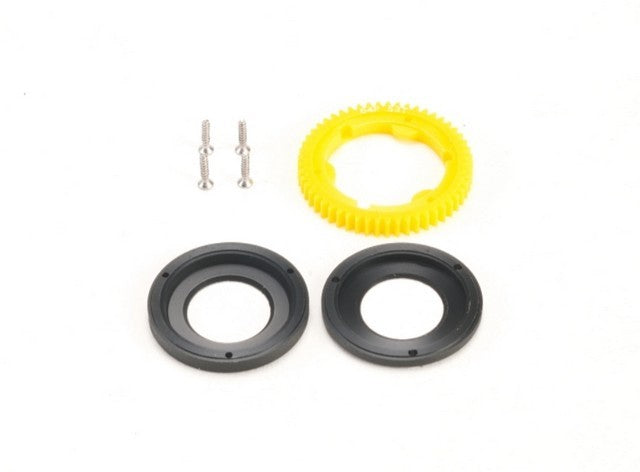

PN Racing PNWC Mini-Z Enclosed Cover Kit Spur Gear 64P 53T (Yellow) for Gear Differential
Lagerstatus:
På lager hos leverandør - bestil før kl. 12:00, leveret om 6-8 dageAfhentning:
Ikke på lager
- Levering 1–2 hverdage
- Fragt fra 35 kr.
-
E-mærket webshop
- Nem og sikker betaling
-
Kan bestilles til eller afhentes i Nørresundby
Se butiksoplysninger
Beskrivelse
Beskrivelse
Description
PN Racing Mini-Z Enclosed Cover Kit Spur Gear 64P 52T for Gear Differential
Changing Spur Gear Ratio
1. Loosen Tension Nut to separate side gears.
2. Allow spider gear pins to recess into carrier. Depress with screw driver if necessary as shown by arrows.
3. Remove spur gear.
4. Installation is reverse of removal
Install Cover
1. Insert Outer Cover (with see through screw hole) in Spur Gear Groove (wheel side) and line up the screw hole with the spur gear
2. Insert Inner Cover (screw hole can't see through) in Spur Gear Groove (shaft side) and line up the screw hole with the spur gear
3. Install 3 screws, gently tighten diagonally (Thin Plastic can strip easily, Do Not Over Tighten
