Beskrivelse
Beskrivelse

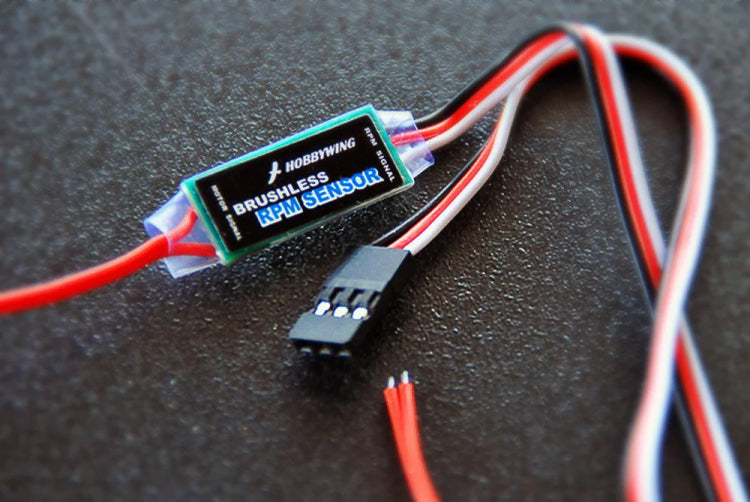

Hobbywing HW86060041 - RPM Sensor for High Voltage ESC'sThe RPM sensor is an accessory for high voltage speed controllers.It detects the voltage changes at the wires of brushless motor, and then outputs the RPM signal. This RPM sensor can work with some speed control systems for helicopters. And one of its typical applications is to work as the RPM sensor for V-Bar system made by Mikado (www.mikado-heli.de).SpecificationsSpecs:Size: 23x10x2mmWeight: 6g (Input and output wires are included)Working voltage: 3.5V to 8.4V (1S to 2S LiPo)Current: 1-5mAVoltage range of the motor wires: 2-14S LipoRPM range (for 2 poles brushless motor): 1000-300.000Working temperature: 0-50°CHow to Use:The lead A and lead B is connected to any 2 wires of the brushless motor (Do not need to consider about the polarity). The lead C is a three color wires with a connector at the end, the black wire is the ground wire, the red wire is connected to 3.3V or 5V to supply the sensor, and the white wire outputs RPM signal.
