SB-3262SG Servo 28Kg 0,08s HV Alu Brushless Steel Gear Low Profile

SAVÖX SAV-SB3262SG - SB-3262SG Servo 28Kg 0.08s HV Alu Brushless Steelgears Low Profile

Monster Line
The pinnacle of Team Savox engineering - the Monster Line features our most advanced servos, built for drivers, pilots, and racers who demand the absolute best in torque, speed, and durability. With high-voltage brushless motors, steel gears, and optimized internals, Monster Line servos dominate in everything from 1/8 racing to high-load surface builds and heavy-duty off-road. It’s performance without compromise.



SB-3262SG Lightweight Brushless
Introducing the SB-3262SG — a lightweight servo with a next-gen brushless motor that delivers more torque with less weight. Ideal for weight-conscious racers who need fast response and high output.

Specs:

• Line: MONSTER LINE
• Application: CAR / BOAT / AIRPLANE
• Servo Size: Low Profile
• Operating Voltage: 6.0V-8.4V
• Speed @6.0V: 0.1s/60°
• Torque @6.0V: 22kg/cm
• Speed @7.4V: 0.08s/60°
• Torque @7.4V: 28kg/cm
• Speed @8.4V: 0.065s/60°
• Torque @8.4V: 35kg/cm
• Amplifier Type: Digital Controller
• Motor Type: Patented Lightweight Brushless
• Case Type: Aluminium
• Protection: Water Resistant

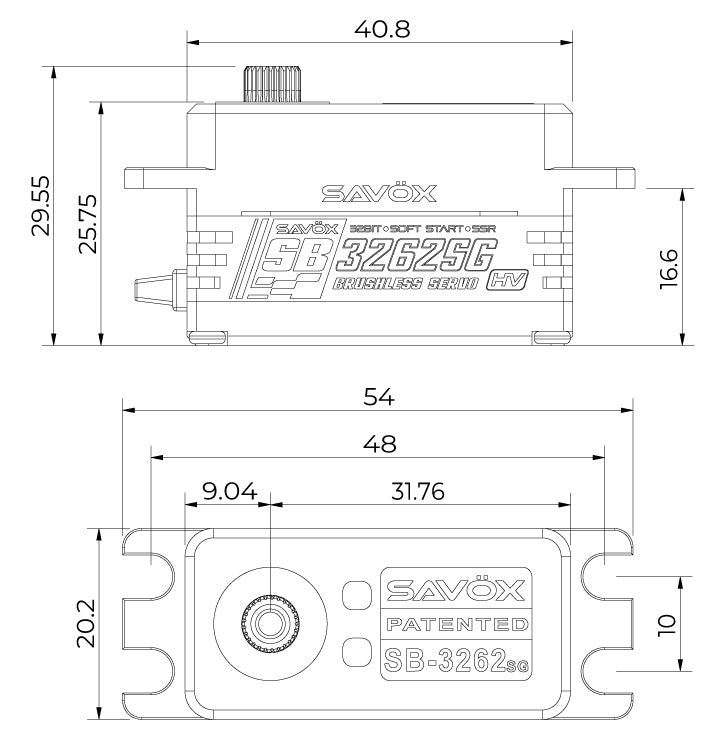

• Dimensions: L40.8xW20.2xH25.4mm
• Weight: 53g

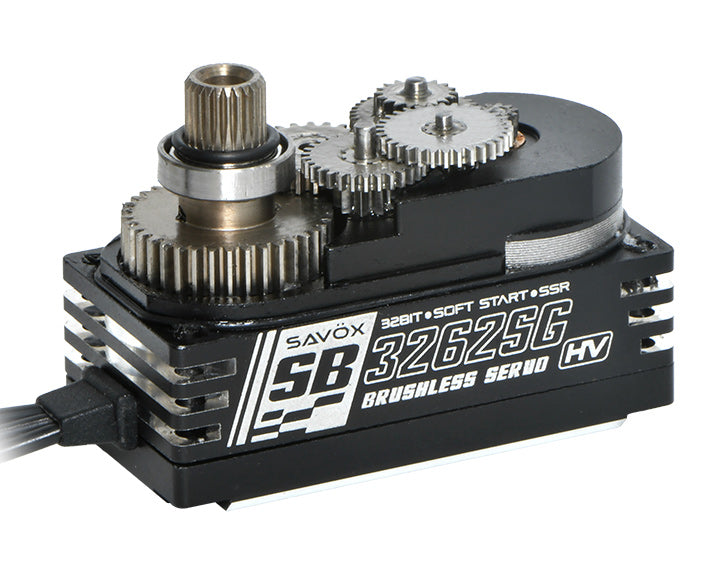

• Gear Type: Specialized Steel
• Compatibility: Sanwa SUR & SSR, Futaba UR & SR
• PCB Board: 32-bit
• Horn Gear Spline: 25T (Φ6)
• Rotating Direction: Clockwise (when 1000→2000μsec)
• Max Travel: ~130° (when 900→2100μsec)
• Operating Travel: 90° (when 1000→2000μsec)
• Neutral Position: 1500μsec
• Bearing: 2x Ball Bearings
• Potentiometer: VR
• Cable Diameter: 22AWG
• Cable Length: 300±5mm
• Connector: JR
• Stall Current @6.0V: 4500mA
• Operating Current @6.0V: 200mA
• Stall Current @7.4V: 5600mA
• Operating Current @7.4V: 220mA
• Stall Current @8.4V: 6300mA
• Operating Current @8.4V: 250mA
• Idle Current: 5mA
• Dead Band Width: 3-5μsec
• Frequency Range: 50-360Hz
• Control System: Pulse Width Modification
• Operating Temperature: -10°C to 50°C
