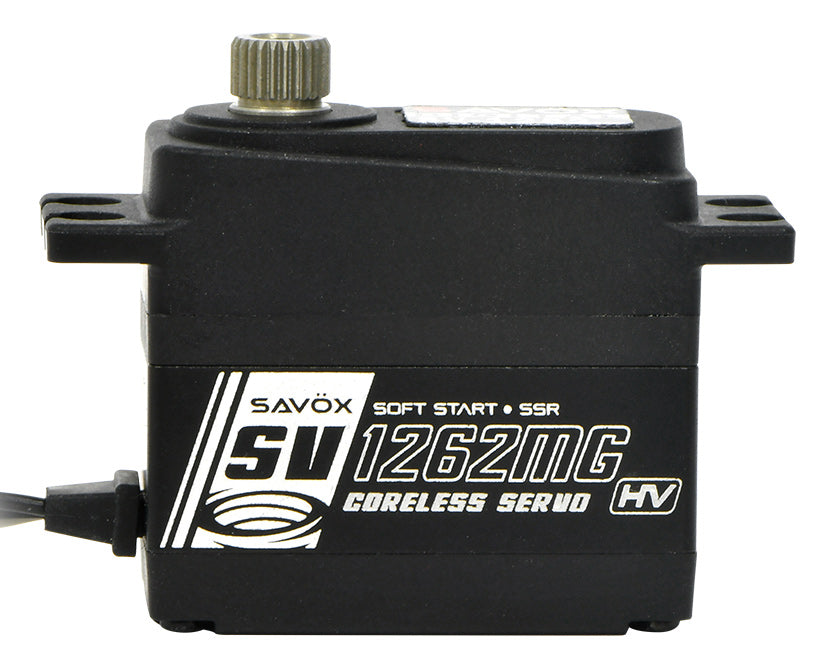

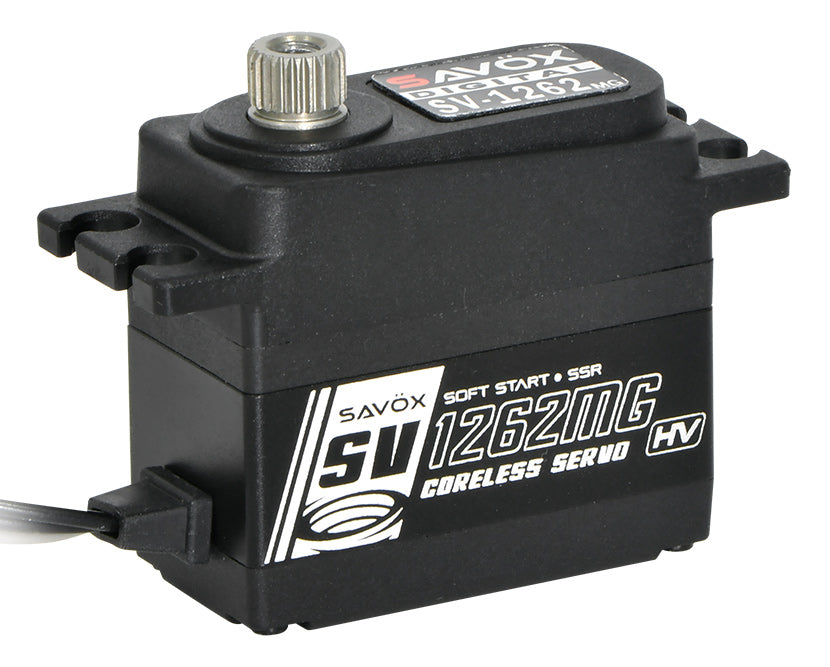

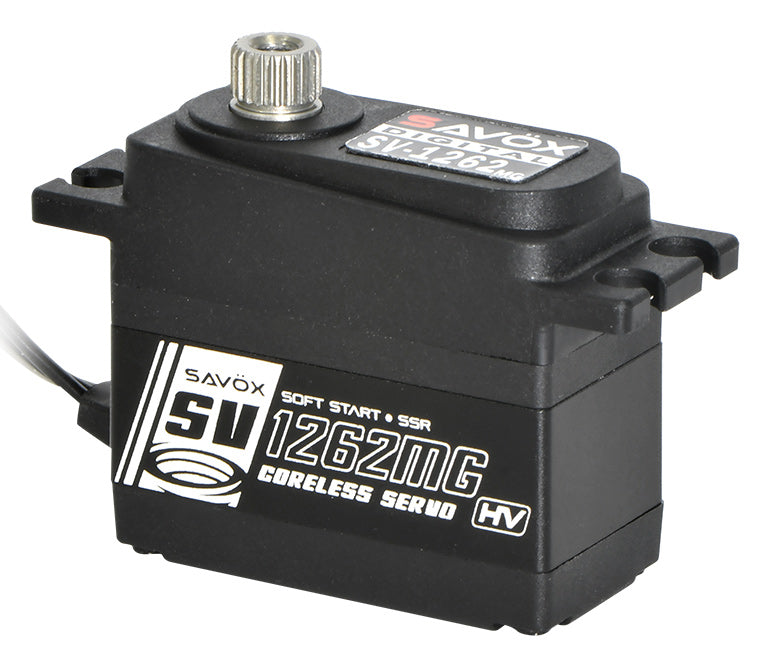

SV-1262MG Servo 7Kg 0.095s Metal Gear Mini

Product Information:
High-End Mini Servo with Pro features. Smaller footprint (32.4 × 16.8 × 29.8 mm) with full-size performance.

Lightweight Power
Only 30g, yet capable of delivering the torque and speed needed for RC aircraft and 1/12 scale vehicles.

Features:

• Coreless motor
• Equipped with a 32-bit PCB board
• New generation design for improved performance
• Compact size
• 32mm in length (compared to 35mm on SV-1250MG)
• Ideal for tight installation spaces
• Similar specs to SV-1250MG
• Tested for 1/12 on-road cars

Compact + Strong

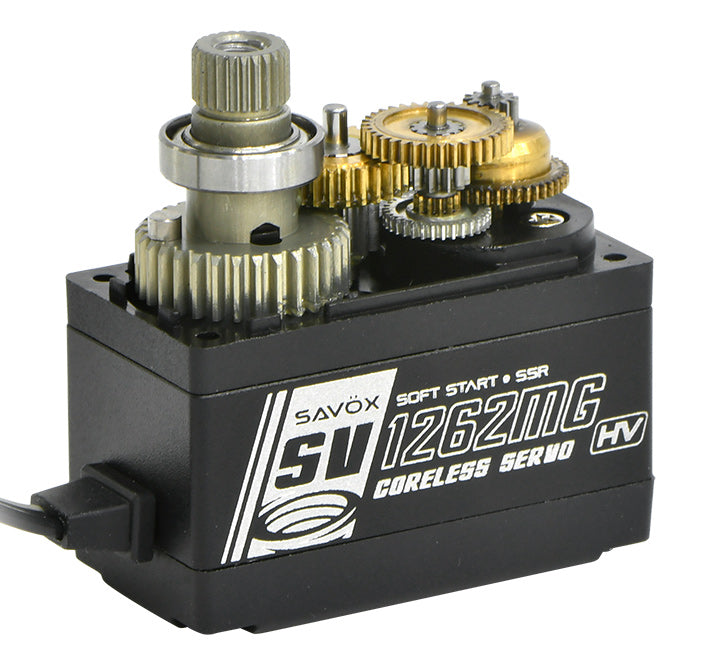

Hybrid Aluminum/Composite case with metal/composite gears for reliable durability. Only 32.4 × 16.8 × 29.8 mm — perfect for tight builds. The SV-1262MG proves that mini servos don’t need to compromise. Its hybrid case construction and coreless motor deliver exceptional performance in a space-saving package, making it ideal for competitive 1/12 racers and precision-focused aircraft.

Coreless Precision
Smooth, consistent response powered by a high-efficiency coreless motor.

Specifications:

• Line: BLACK EDITION
• Applications: CAR, HELI, AIRPLANE & BOATS
• Servo Size: Mini
• Operating Voltage: 6.0V-8.4V
• Speed @ 6.0V: 0.11 s/60°
• Torque @ 6.0V: 4.6 kg/cm
• Speed @ 7.4V: 0.095 s/60°
• Torque @ 7.4V: 7.0 kg/cm
• Speed @ 8.4V: 0.09 s/60°
• Torque @ 8.4V: 9.0 kg/cm
• Amplifier Type: Digital Controller
• Motor Type: Coreless
• Case Type: Hybrid (Aluminum/Composite)
• Protection: Water Resistant

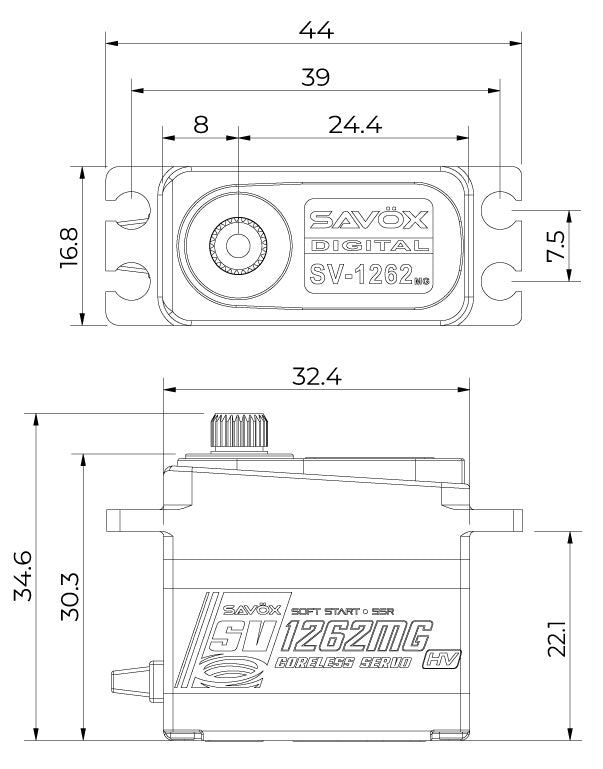

• Dimensions (L x W x H): 32.4 x 16.8 x 30.3 mm
• Weight: 30 g
• Gear Type: Hybrid (Metal/Composite)
• Compability: Sanwa SUR, SSR & Futaba UR, SR
• PCB Board: 32-bit
• Horn Gear Splines: 25T (Φ6)
• Rotating Direction: Counterclockwise (when 1000→2000 μsec)
• Max Travel: ~154° (when 800→2200 μsec)
• Operating Travel: 110° (when 1000→2000 μsec)
• Neutral Position: 1500 μsec
• Bearings: 2x Ball Bearings
• Potentiometer: VR
• Cable Diameter: 26 AWG
• Cable Length: 250 ±5 mm
• Connector: JR
• Stall Current @ 6.0V: 1700 mA
• Operating Current @ 6.0V: 100 mA
• Stall Current @ 7.4V: 2000 mA
• Operating Current @ 7.4V: 120 mA
• Stall Current @ 8.4V: 2200 mA
• Operating Current @ 8.4V: 150 mA
• Idle Current: 5 mA
• Dead Band Width: 3-5 μsec
• Frequency Range: 50-360 Hz
• Control System: Pulse Width Modification
• Operating Temperature: -10°C to 50°C
