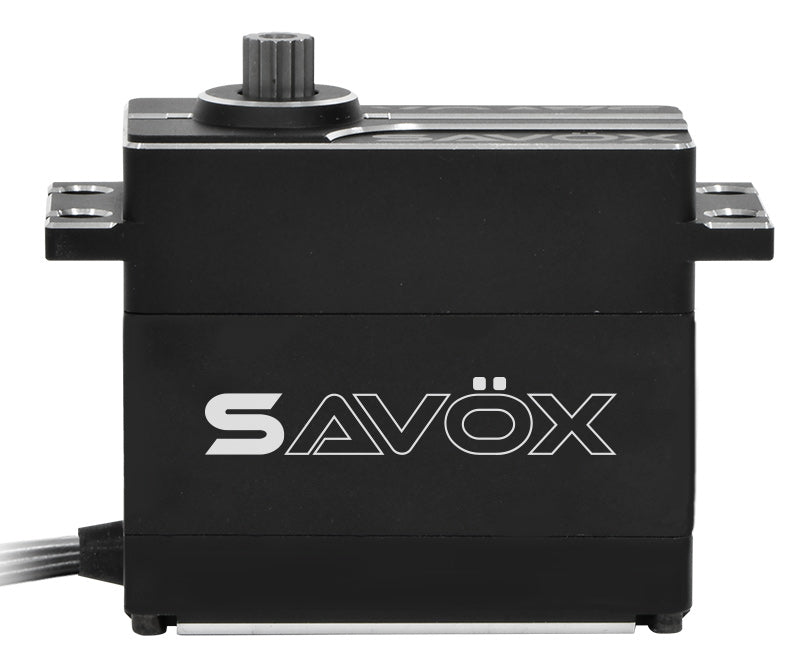

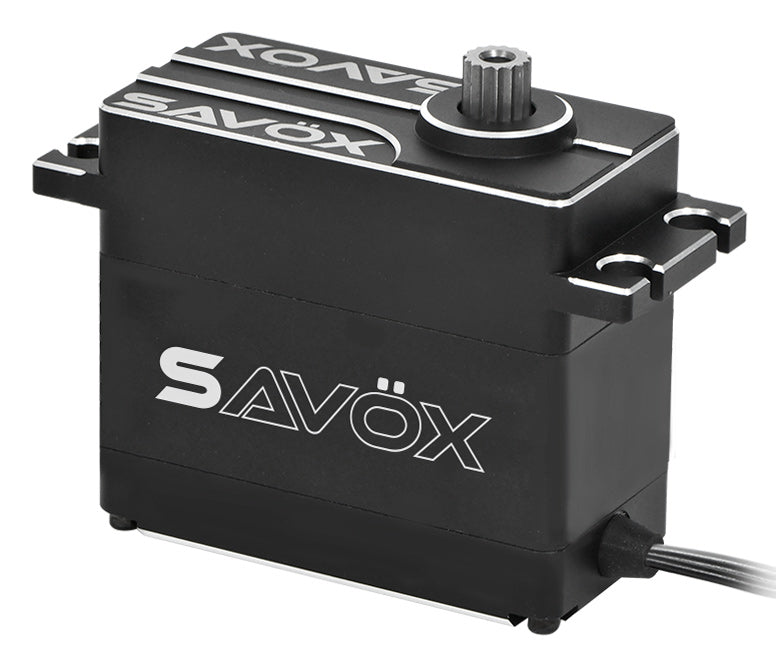

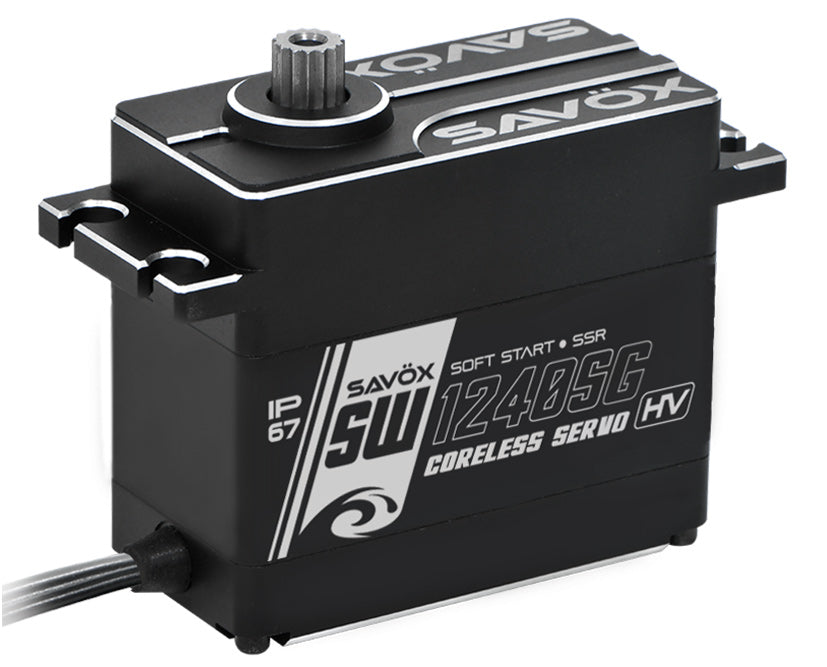

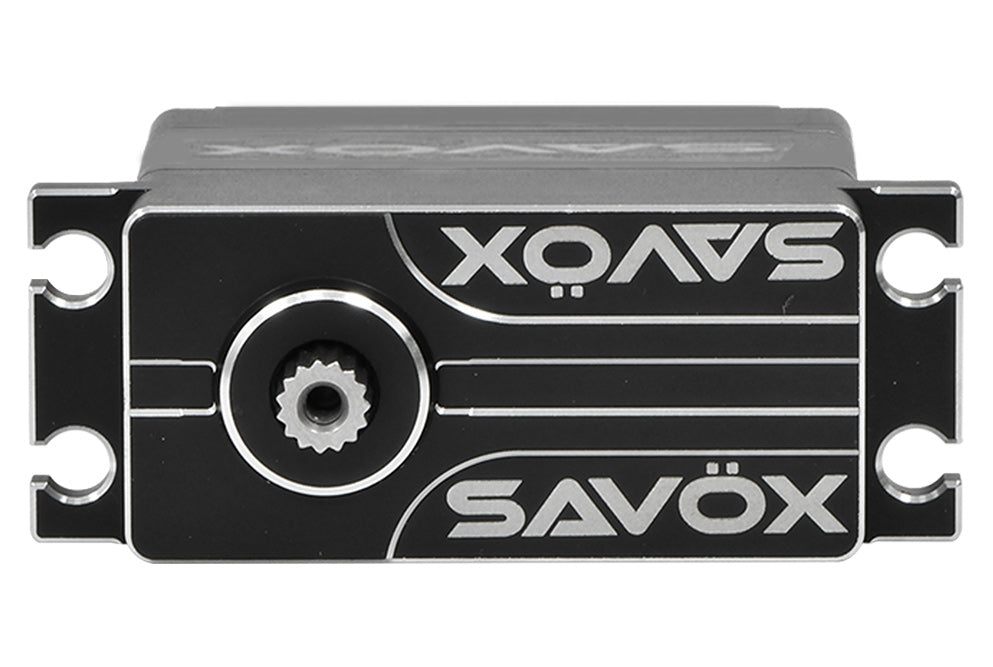

SW-1240SG Servo 65Kg 0,17s HV Alu Coreless Steel Gear WP

Savöx SW-1240SG - Large Scale IP67 Coreless HV Monster Servo 0.17s 65kg/cm

Built for 1/5 performance
The new SW-1240SG combines Rhino-size fitment, IP67 protection, and next-gen coreless power to dominate large-scale competition.

Blue Line
Built for adventure, the Blue Line is IP67 waterproof-rated and ready for anything. These servos are designed for boats, trail crawlers, and RC builds that encounter mud, water, and extreme terrain. With rugged construction, durable gearing, and high-voltage compatibility, Blue Line servos keep going even when the trail gets rough. When you can’t predict the conditions - this is the servo to trust.

IP67 Waterproof Design
Fully sealed for use in wet, muddy, or dusty 1/5-scale racing environments.

Coreless Power
New-generation high-efficiency coreless motor provides strong torque and smooth response.

Rhino-Size Format
Fully sealed for use in wet, muddy, or dusty 1/5-scale racing environments.

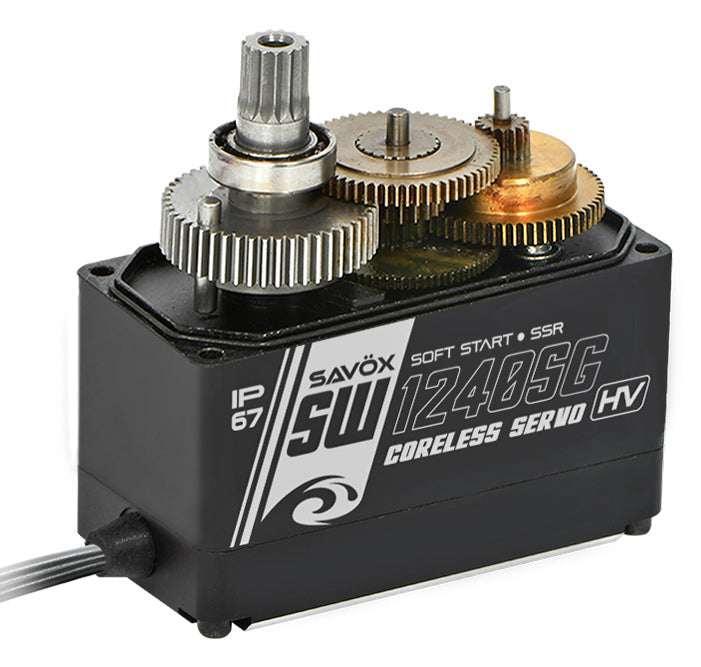

Specialized Steel Gears
Delivers long-term durability and reliability under extreme load.

Specs:

• Line: BLUE LINE
• Application: Car/Boat
• Servo Size: Large
• Operating Voltage: 6.0-8.4V
• Speed @ 6.0V: 0.2s/60°
• Torque @ 6.0V: 50kg/cm
• Speed @ 7.4V: 0.17s/60°
• Torque @ 7.4V: 65kg/cm
• Speed @ 8.4V: 0.15s/60°
• Torque @ 8.4V: 75kg/cm
• Amplifier Type: Digital Controller
• Motor Type: Coreless
• Case Type: Aluminium
• Protection: Waterproof (IP67)

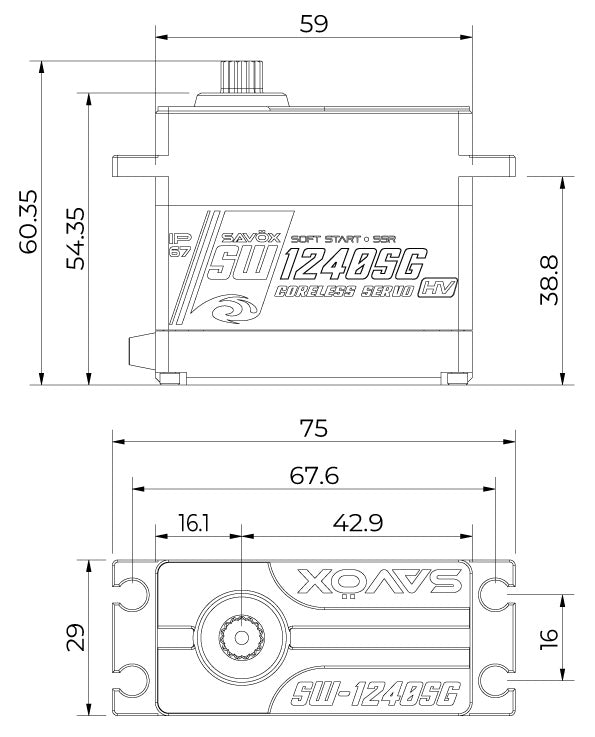

• Dimensions (L x W x H): 59x54.35x29mm
• Weight: 196g
• Gear Type: Specialized Steel
• Compatibility: Sanwa SSR
• PCB Board: 32-bit
• Horn Gear Spline: 15T (Φ7.8mm)
• Rotating Direction: Counterclockwise (when 1000→2000μsec)
• Max Travel: ~130° (when 800→2200μsec)
• Operating Travel: 100° (when 1000→2000μsec)
• Neutral Position: 1500μsec
• Bearings: 2x Ball Bearings
• Potentiometer: VR
• Cable Diameter: 22AWG
• Cable Length: 450 ±5mm
• Connector: JR Connector
• Stall Current @ 6.0V: 5000mA
• Operating Current @ 6.0V: 150mA
• Stall Current @ 7.4V: 6000mA
• Operating Current @ 7.4V: 180mA
• Stall Current @ 8.4V: 7000mA
• Operating Current @ 8.4V: 200mA
• Idle Current: 6mA
• Dead Band Width: 3-5 μsec
• Frequency Range: 50-360 Hz
• Control System: Pulse width modification
• Operating Temperature: -10°C to 50°C
