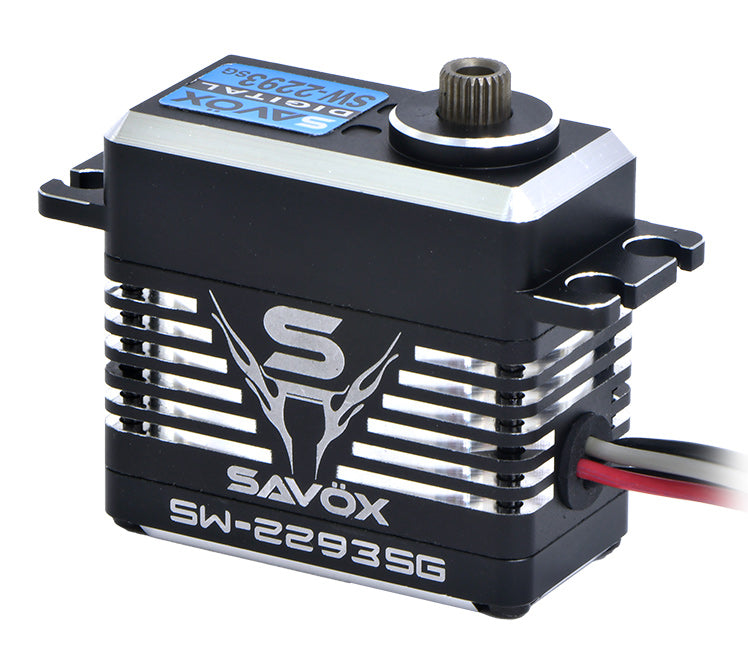

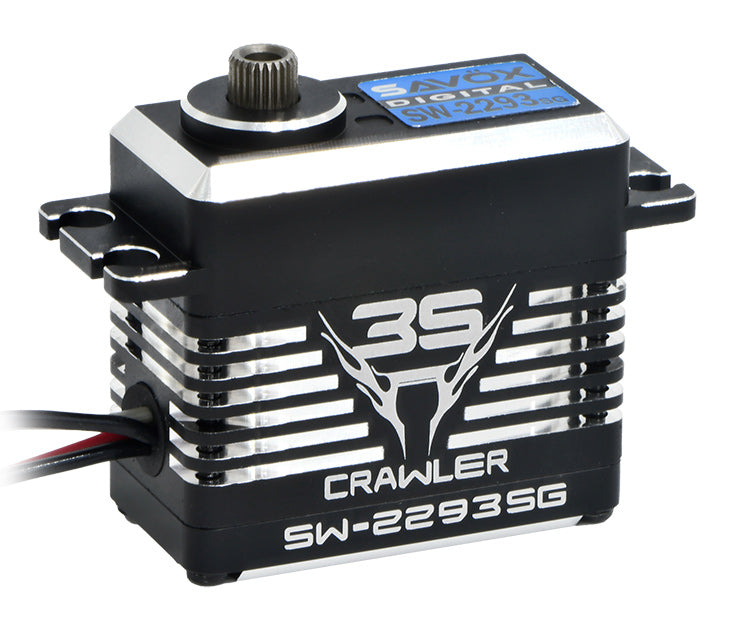

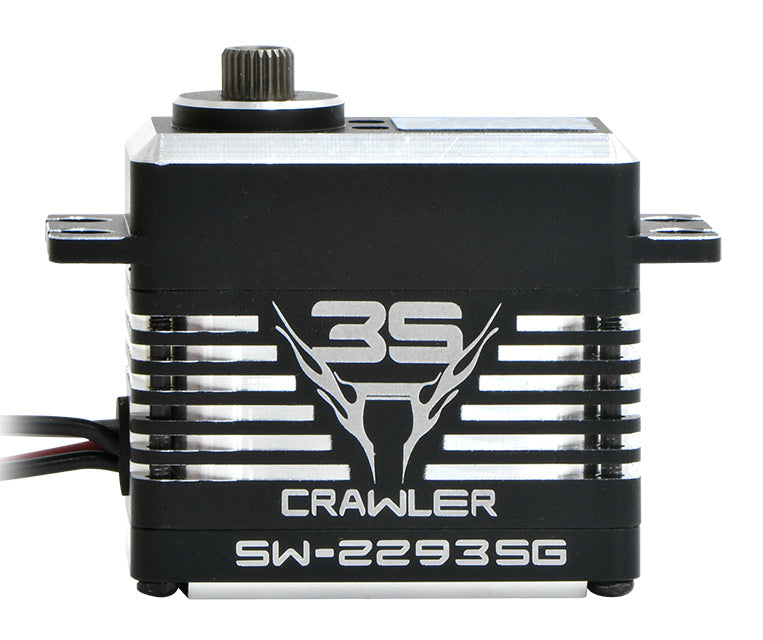

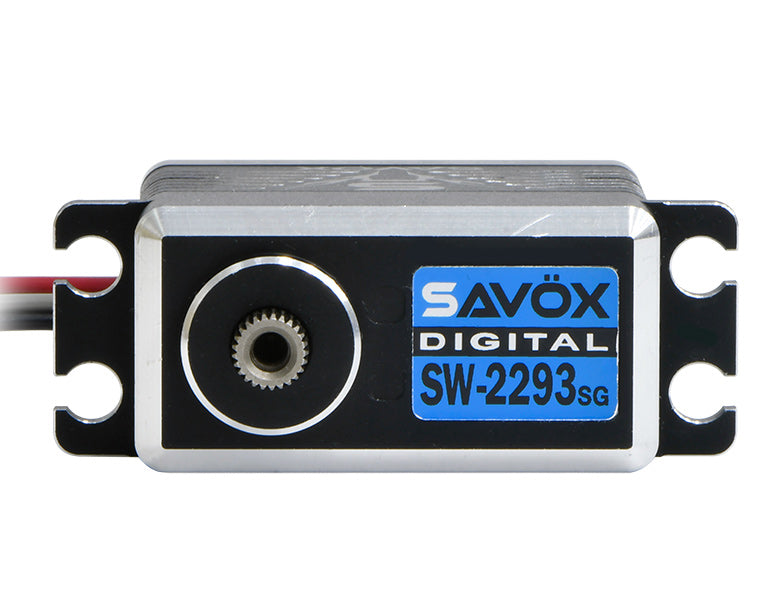

SW-2293SG Crawler Servo 75Kg 3S Powered Alu Brushless Steel Gear WP

SAVÖX SAV-SW2293SG - SW-2293SG Crawler Servo 75Kg 3s LiPo Powered Alu Brushless Steelgear WP

Blue Line
Built for adventure, the Blue Line is IP67 waterproof-rated and ready for anything. These servos are designed for boats, trail crawlers, and RC builds that encounter mud, water, and extreme terrain. With rugged construction, durable gearing, and high-voltage compatibility, Blue Line servos keep going even when the trail gets rough. When you can’t predict the conditions - this is the servo to trust.



Direct Power, 3S Ready
Introducing the SW-2293SG — a direct-power servo designed for crawlers using 3S LiPo setups. Runs straight from your LiPo — no BEC bottleneck, no compromises.

Watch to learn about the separate power/signal wiring and why this format delivers more torque.

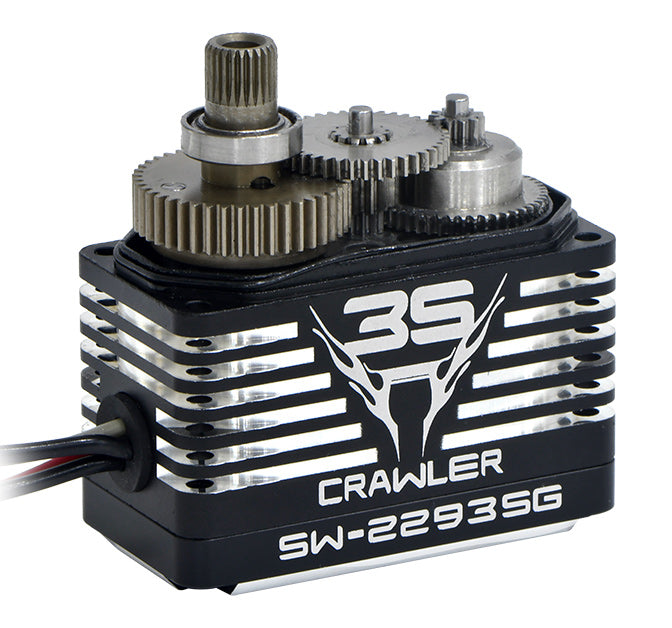

Steel Gear Durability
Rugged gear train engineered to handle shock loads and heavy-duty crawling.

High Torque Output
Over 70kg/cm at 12.6V, delivering strength for demanding crawler applications.

IP67 Waterproof
Built to withstand mud, water, and extreme trail conditions.

Specs:

• Line: BLUE LINE
• Application: CAR / BOAT
• Servo Size: Standard
• Operating Voltage: 12.6V (3s LiPo)
• Speed @12.6V: 0.11s/60°
• Torque @12.6V: 75kg/cm
• Amplifier Type: Digital Controller
• Motor Type: Patented Lightweight Brushless
• Case Type: Aluminium
• Protection: Waterproof (IP67)

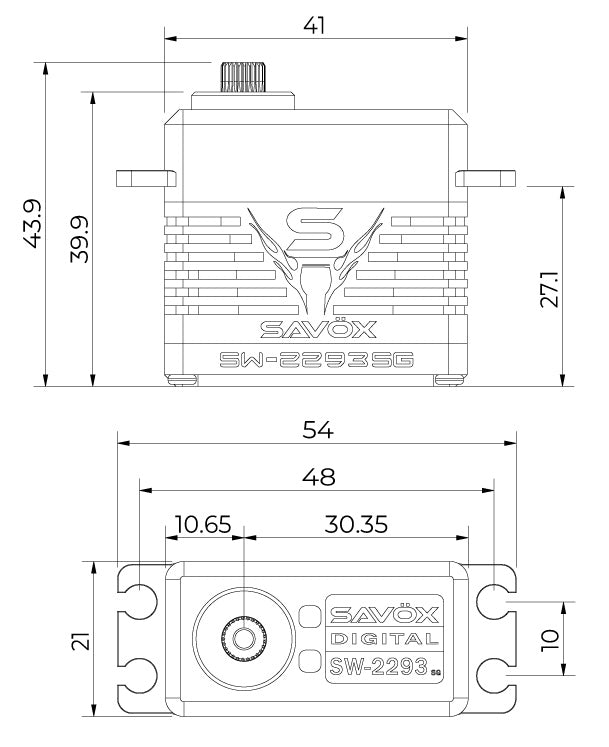

• Dimensions: L41xW21xH39.9mm
• Weight: 90g
• Gear Type: Specialized Steel
• Compatibility: Sanwa SUR & SSR, Futaba UR & SR
• PCB Board: 32-bit
• Horn Gear Spline: 25T (Φ6)
• Rotating Direction: Clockwise (when 1000→2000μsec)
• Max Travel: ~180° (when 600→2400μsec)
• Operating Travel: 100° (when 1000→2000μsec)
• Neutral Position: 1500μsec
• Bearing: 3x Ball Bearings
• Potentiometer: VR
• Cable Diameter: 22AWG
• Cable Length: 450±5mm
• Connector: JR
• Stall Current @12.6V: 6500mA
• Operating Current @12.6V: 100mA
• Idle Current: 5mA
• Dead Band Width: 3-5μsec
• Frequency Range: 50-360Hz
• Control System: Pulse Width Modification
• Operating Temperature: -10°C to 50°C
