Savöx  |  Varenummer: SAV-SA1230SGPLUS Producent varenr.: SA-1230SG PLUS  |  EAN: 4710006994161

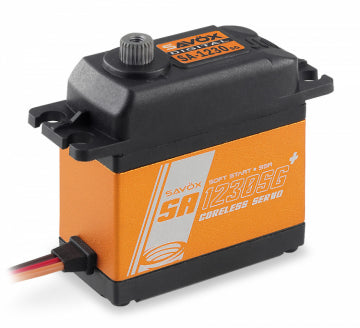

Savöx SA-1230SG PLUS - SA-1230SG Plus Servo 36Kg 0,16s Alu Coreless Steel Gear

612,54 kr

Få prismatch på Savöx SA-1230SG PLUS - SA-1230SG Plus Servo 36Kg 0,16s Alu Coreless Steel Gear

Har du fundet varen billigere hos en anden forhandler? Indsæt linket herunder, så får du hurtigt svar på, om vi kan matche prisen. Vi kigger på totalprisen — altså inkl. fragt, told og gebyrer — og varen skal helst være på lager hos dem. Vi matcher, hvis vi kan. Læs betingelserne her.

Lagerstatus:

På lager hos leverandør - bestil før kl. 12:15, leveret om 3-5 dage

Afhentning:

Ikke på lager

På lager? Så afsender vi om:

Dag-til-dag levering

Dag-til-dag levering
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
  • Levering 1–2 hverdage
  • Fragt fra 35 kr.
  • E-mærket webshop
  • Nem og sikker betaling
  • Kan bestilles til eller afhentes i Nørresundby
     Se butiksoplysninger

Beskrivelse

SAVÖX SA-1230SG PLUS - Coreless Steel-Geared High Torque Servo

The Savox SA-1230SG-PLUS Monster Torque Steel-Gear digital servo is the servo that is ideal for those requiring extra torque, but not using high voltage as a power source.

Features:
  • New: Soft Start
  • New: Sanwa SSR compatible
  • Extremely strong unique steel gears ensure long-life and durability
  • Ideal for steering on rock crawlers, monster trucks, and large scale aircraft
  • Slightly taller case design

Specifications:
  • Torque @ 4.8V: 30.0kg
  • Torque @ 6V: 36.0kg
  • Speed @ 4.8V: 0.20 sec/60 deg
  • Speed @ 6V: 0.16 sec/60 deg
  • Dimensions L x W x H: 40.3 x 20.2 x 44.9mm
  • Weight: 79g

Technical Details:
  • Operating Temperature: -10° - 50°C
  • Running Current (no load): 180mA @4.8V, 250mA @6.0V
  • Stall Current (at locked): 4200mA @4.8V, 5300mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 200 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Coreless
