Beskrivelse

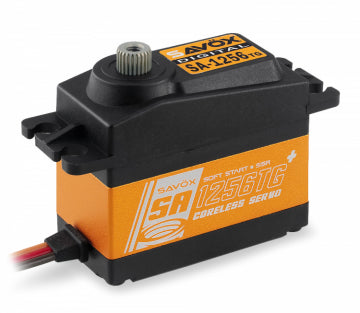

SAVÖX SA-1256TG PLUS - Coreless Titanium-Geared High Torque Servo

The SA-1256TG-PLUS servo is a high torque servo and is perfect for those who are looking for a minimized backlash to use on flying surfaces of RC planes.

Features:
  • New: Soft Start
  • New: Sanwa SSR Compatible
  • Titanium gears ensure long life, durability & lighter weight
  • Minimized backlash for precision aerobatic airplane use
  • Aluminum middle case to help with cooler operating temperatures

Specifications:
  • Torque @ 4.8V: 16kg/cm
  • Torque @ 6V: 20kg/cm
  • Speed @ 4.8V: 0.18 sec/60 deg
  • Speed @ 6V: 0.15 sec/60 deg
  • Dimensions L x W x H: 40.3 x 20.2 x 37.2mm
  • Weight: 64g

Technical Details:
  • Operating Temperature: -10° - 50°C
  • Running Current (no load): 100mA @4.8V, 120mA @6.0V
  • Stall Current (at locked): 4000mA @4.8V, 5000mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 200 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Coreless
