Savöx  |  Varenummer: SAV-SB2262SG

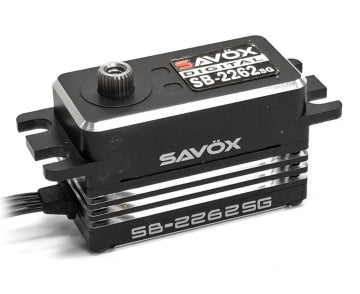

Savöx SB-2262SG - SB-2262SG Servo 23Kg 0,08s HV Alu Brushless Steel Gear Low

838,76 kr

Lagerstatus:

Ikke på lager

Afhentning:

Ikke på lager

Levering i morgen - Bestil inden:

Dag-til-dag levering

Dag-til-dag levering
  • Visa
  • Mastercard
  • MobilePay

Beskrivelse

SAVÖX SB2262SG - Monster Torque Low Profile Steel Gear Servo 0.08s/25kg @ 7.4V

The powerful "Monster" performance series servos from Savox utilize an all aluminum case, and unique brushless motor and controller technology to boost power up to 35% over previous generation servos.

Features:
  • Full Aluminum Case
  • 2 Precision Ball Bearings
  • Metal Gears

Specifications:
  • Torque @ 6.0v: 18kg
  • Speed @ 6.0v: 0.10s/60°
  • Torque @ 7.4v: 25kg/cm
  • Speed @ 7.4v: 0.08s/60°
  • Torque @ 8.4v: 32kg/cm
  • Speed @ 8.4v: 0.065s/60°
  • Dimensions L x W x H: 40.8 x 20.2 x 25.75mm
  • Weight: 62g

Technical Details:
  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 180mA @6.0V, 200mA @7.4V, 220mA @8.4V
  • Stall Current (at locked): 4500mA @6.0V, 5600mA @7.4V, 6300mA @8.4V
  • Idle Current: 5mA @6.0V, 5mA @7.4V, 5mA @8.4V
  • Wire Length: 300 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 90° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Brushless

Forsendelse

Vi benytter GLS.
Her er der følgende muligheder:

  • Levering til pakkeshop, fast rate uanset vægt og beløb: 47,00 kr.
  • Levering direkte til kundens adresse: 0-5 kg: 69 kr, 5-99 kg: 89 kr.

Leveringstid: 1 dag.
Der afsendes på bestillingsdagen frem til 17.00. Leveringstiden er gældende for både privat- og erhvervsadresser.
