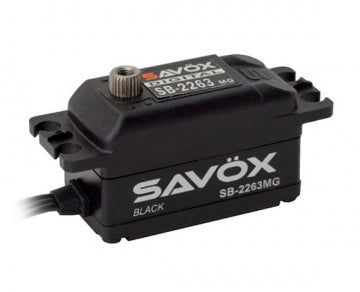

Savöx SB-2263MG BLACK EDIT - SB-2263MG Servo 10Kg 0,076s Brushless Black Edition Low

SAVÖX SB-2263MGBE - Brushless Metal-Geared High Speed Low-Profile Servo

The SB-2263MGBE is a high speed, brushless, low profile servo suitable for RC cars and boats where you want/need a fast and low servo that is not High Voltage. The "BE" version has a cool and sleek all black look.

Features:

• Metal gear train ensures durability under harsh situations
• Cool black design
• Ideal for 1/10 on road cars requiring a high speed servo

Specifications:

• Voltage range: 4.8-6.6V
• Torque @ 4.8V: 8kg/cm
• Torque @ 6V: 10kg/cm
• Speed @ 4.8V: 0.10 sec/60 deg
• Speed @ 6V: 0.076 sec/60 deg
• Dimensions L x W x H: 40.8 x 20.2 x 25.4mm
• Weight: 48g

Technical Details:

• Operating Temperature: -10° - 50°C
• Running Current (no load): 180mA @4.8V, 220mA @6.0V
• Stall Current (at locked): 2900mA @4.8 V, 3700mA @6.0V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 50 ± 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 90° (1000 ? 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 ? 2200 µ second
• Maximum Travel: Appx 130° (900 ? 2100 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Brushless
