Savöx  |  Varenummer: SAV-SB2267SG Producent varenr.: SB-2267SG  |  EAN: 4,71001E+12

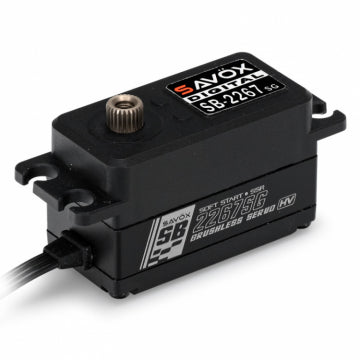

Savöx SB-2267SG - SB-2267SG Servo 23Kg 0.08s HV Alu Brushless Low Steel Gears

683,39 kr

Få prismatch på Savöx SB-2267SG - SB-2267SG Servo 23Kg 0.08s HV Alu Brushless Low Steel Gears

Har du fundet varen billigere hos en anden forhandler? Indsæt linket herunder, så får du hurtigt svar på, om vi kan matche prisen. Vi kigger på totalprisen — altså inkl. fragt, told og gebyrer — og varen skal helst være på lager hos dem. Vi matcher, hvis vi kan. Læs betingelserne her.

Lagerstatus:

På lager hos leverandør - bestil før kl. 12:15, leveret om 3-5 dage

Afhentning:

Ikke på lager

På lager? Så afsender vi om:

Dag-til-dag levering

Dag-til-dag levering
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
  • Levering 1–2 hverdage
  • Fragt fra 35 kr.
  • E-mærket webshop
  • Nem og sikker betaling
  • Kan bestilles til eller afhentes i Nørresundby
     Se butiksoplysninger

Beskrivelse

Savöx SB-2267SG - Monster Torque, High Voltage, Low Profile, Brushless, Steel Gear Servo

This powerful performance low profile servo from Savox utilize an aluminum middle case and super strong (and light) upper and lower composite plastic case case and a unique brushless motor & controller technology to boost power up to 35% over previous generation servos.

Tech Specifications:
  • Servo Technology: Digital High Voltage
  • Input Voltage: 6-8.4V
  • Motor Type: Brushless
  • Gear Material: Steel
  • Output Gear Spline: 25 Tooth
  • Bearings: 2 Ball Bearings
  • Connector type: JR
  • Case: Composite plastic top & bottom, aluminium middle
  • Torque @ 6.0V: 18kg/cm
  • Speed @ 6.0V: 0.10s/60deg
  • Torque @ 7.4V: 25kg/cm
  • Speed @ 7.4V: 0.08s/60deg
  • Torque @ 8.4V: 32kg/cm
  • Speed @ 8.4V 0.065s/60deg
  • Dimensions (LxWxH): 40.8x20.2x26.05mm
  • Weight: 57g
  • Operating Temperature: -10°to +50°C)
  • Running Current (no load): 180mA @6.0V, 200mA @7.4V, 220mA @8.4V
  • Stall Current (at locked): 4500mA @6.0V, 5600mA @7.4V, 6300mA @8.4V
  • Idle Current: 5mA @6.0V, 5mA @7.4V, 5mA @8.4V
  • Wire Length: 300 +/- 5mm
  • Operating Travel: 90° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 333 Hz
