Savöx  |  Varenummer: SAV-SB2271SGPLUS

Savöx SB-2271SG PLUS - SB-2271SG Plus Servo 20Kg 0,065s HV Alu Brushless Steel Gear

714,44 kr

Lagerstatus:

På lager hos leverandør - bestil nu, leveres den 16 maj (7 dage)

Afhentning:

Der er 0 styk på lager - Nørresundby

Savöx SB-2271SG PLUS - SB-2271SG Plus Servo 20Kg 0,065s HV Alu Brushless Steel Gear er restordret og sendes så snart det er tilbage på lager.

Levering i morgen - Bestil inden:

Dag-til-dag levering

Dag-til-dag levering
  • Visa
  • Mastercard
  • MobilePay

Beskrivelse

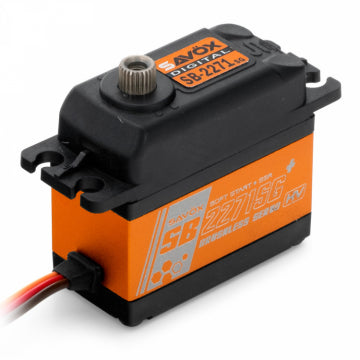

SAVÖX SB-2271SGPLUS - High Voltage Brushless Metal-Geared High Speed/Torque Servo

The Savöx SB-2271SG Plus High Voltage Brushless Digital Servo combines leading edge technology with super high 12 bit (4096) resolution.

Features:
  • Soft Start
  • SSR compatible
  • Unique steel gear train
  • Capable of HV operation
  • Brushless motor for smooth operation and efficiency
  • Ideal for 1/10 buggies and trucks, and some heli applications

Specifications:
  • Torque @ 6V: 15kg/cm
  • Torque @ 7.4V: 20kg/cm
  • Torque @ 8.4V: 25kg/cm
  • Speed @ 6V: 0.085 sec/60 deg
  • Speed @ 7.4V: 0.065 sec/60 deg
  • Speed @ 8.4V: 0.055 sec/60 deg
  • Dimensions L x W x H: 40.3 x 20.2 x 38.7mm
  • Weight: 69g

Technical Details:
  • Operating Temperature: -10° - 50°C
  • Running Current (no load): 180mA @6.0V, 220mA @7.4V
  • Stall Current (at locked): 6000mA @6.0V, 7400mA @7.4V
  • Idle Current: 5mA @6.0V, 5mA @7.4V
  • Wire Length: 300 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Brushless

Forsendelse

Vi benytter GLS.
Her er der følgende muligheder:

  • Levering til pakkeshop, fast rate uanset vægt og beløb: 47,00 kr.
  • Levering direkte til kundens adresse: 0-5 kg: 69 kr, 5-99 kg: 89 kr.

Leveringstid: 1 dag.
Der afsendes på bestillingsdagen frem til 17.00. Leveringstiden er gældende for både privat- og erhvervsadresser.

Nem og sikker betaling

Betalingsmetoder

  • Visa
  • Mastercard
  • MobilePay

Dine betalingsoplysninger behandles sikkert. Vi opbevarer ikke kreditkortoplysninger og har ingen adgang til dine kreditkortinformationer.

Savöx

Savöx SB-2271SG PLUS - SB-2271SG Plus Servo 20Kg 0,065s HV Alu Brushless Steel Gear

714,44 kr

SAVÖX SB-2271SGPLUS - High Voltage Brushless Metal-Geared High Speed/Torque Servo

The Savöx SB-2271SG Plus High Voltage Brushless Digital Servo combines leading edge technology with super high 12 bit (4096) resolution.

Features:
  • Soft Start
  • SSR compatible
  • Unique steel gear train
  • Capable of HV operation
  • Brushless motor for smooth operation and efficiency
  • Ideal for 1/10 buggies and trucks, and some heli applications

Specifications:
  • Torque @ 6V: 15kg/cm
  • Torque @ 7.4V: 20kg/cm
  • Torque @ 8.4V: 25kg/cm
  • Speed @ 6V: 0.085 sec/60 deg
  • Speed @ 7.4V: 0.065 sec/60 deg
  • Speed @ 8.4V: 0.055 sec/60 deg
  • Dimensions L x W x H: 40.3 x 20.2 x 38.7mm
  • Weight: 69g

Technical Details:
  • Operating Temperature: -10° - 50°C
  • Running Current (no load): 180mA @6.0V, 220mA @7.4V
  • Stall Current (at locked): 6000mA @6.0V, 7400mA @7.4V
  • Idle Current: 5mA @6.0V, 5mA @7.4V
  • Wire Length: 300 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Brushless
