Savöx  |  Varenummer: SAV-SB2272MG

Savöx SB-2272MG - SB-2272MG Servo 7Kg 0,032s HV Alu Brushless Metal Gear

524,88 kr

Lagerstatus:

På lager hos leverandør - bestil nu, leveres den 16 maj (7 dage)

Afhentning:

Der er 0 styk på lager - Nørresundby

Savöx SB-2272MG - SB-2272MG Servo 7Kg 0,032s HV Alu Brushless Metal Gear er restordret og sendes så snart det er tilbage på lager.

Levering i morgen - Bestil inden:

Dag-til-dag levering

Dag-til-dag levering
  • Visa
  • Mastercard
  • MobilePay

Beskrivelse

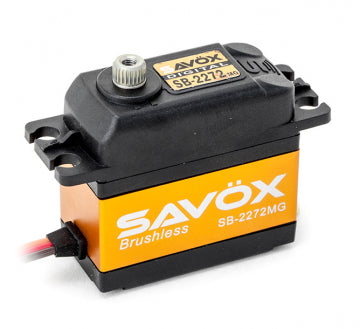

SAVÖX SB-2272MG - High Voltage Brushless Metal-Geared High Speed/Torque Servo

The Savox SB-2272MG High Voltage Brushless Digital Servo combines leading edge technology with super high 12 bit (4096) resolution.

Features:
  • High Voltage
  • Metal Gear train for extended life and durability
  • Brushless motor for smooth operation and efficiency
  • Ideal for helicopter use due to it's amazing speed

Specifications:
  • Torque @ 6V: 5kg/cm
  • Torque @ 7.4V: 7kg/cm
  • Speed @ 6V: 0.045 sec/60 deg
  • Speed @ 7.4V: 0.032 sec/60 deg
  • Dimensions L x W x H: 40.3 x 20.2 x 38.7mm
  • Weight: 66g

Technical Details:
  • Operating Temperature: -10° to 50°C
  • Running Current (no load): 180mA @6.0V, 220mA @7.4V
  • Stall Current (at locked): 6000mA @6.0V, 7400mA @7.4V
  • Idle Current: 5mA @6.0V, 5mA @7.4V
  • Wire Length: 300 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Brushless
