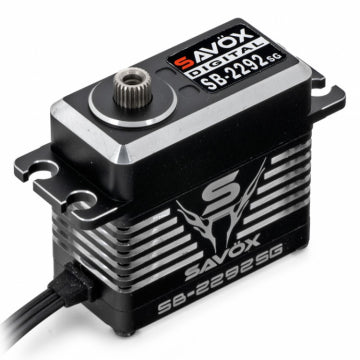

Savöx SB-2292SG - SB-2292SG Servo 50Kg 0.055s 8.4V Alu Brushless Steel Gear

SAVÖX SB-2292SG - High Voltage Brushless Steel-Geared Monster Torque Servo

The powerful "Monster" performance series from Savox utilize an all aluminum case, unique brushless motor and controller technology to boost power up to 35% over previous generation servos.

Features:

• High Voltage
• Full Aluminum Case
• 3 Precision Ball Bearings
• Unique steel gears

Specifications:

• Torque @ 6V: 26kg/cm
• Torque @ 7.4V: 36kg/cm
• Torque @ 8.4V: 50kg/cm
• Speed @ 6V: 0.085 sec/60 deg
• Speed @ 7.4V: 0.07sec/60 deg
• Speed @ 8.4V: 0.055sec/60 deg
• Dimensions L x W x H: 40.3 x 20.2 x 38.7mm

Technical Details:

• Operating Temperature: -10° to 50°C
• Running Current (no load): 180mA @6.0V, 220mA @7.4V
• Stall Current (at locked): 7500mA @6.0V, 9200mA @7.4V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 300 +/- 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 3BB
• Operating Travel: 100° (1000 ? 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 ? 2200 µ second
• Maximum Travel: Appx 130° (900 ? 2100 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Brushless

Included:

• Mounting hardware
• Plastic servo arms: 4pcs
• Aluminium servo arm: 1pcs 1-arm
• Decals
