Savöx  |  Varenummer: SAV-SB2295SG

Savöx SB-2295SG - SB-2295SG Servo 32Kg 0,06s HV Alu Brushless

978,50 kr

Lagerstatus:

Ikke på lager

Afhentning:

Ikke på lager

Levering i morgen - Bestil inden:

Dag-til-dag levering

Dag-til-dag levering
  • Visa
  • Mastercard
  • MobilePay

Beskrivelse

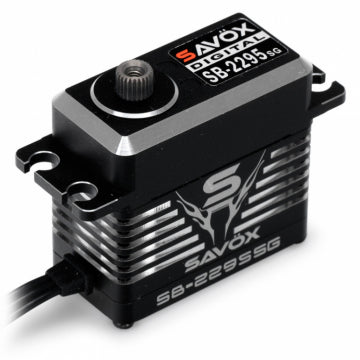

SAVÖX SB-2295SG - High Voltage Brushless Steel-Geared Monster Torque Servo

The powerful "Monster" performance series from Savox utilize an all aluminum case, unique brushless motor and controller technology to boost power up to 35% over previous generation servos. Perfect when you need a powerful and very fast high voltage brushless servo with a aluminium case in application such as 3D helicopters etc.

Features:
  • High Voltage
  • Full Aluminum Case
  • 3 Precision Ball Bearings
  • Unique steel gears

Specifications:
  • Torque @ 6V:
  • Torque @ 7.4V: 32kg/cm
  • Torque @ 8.4V: 40kg/cm
  • Speed @ 6V:
  • Speed @ 7.4V: 0.06sec/60 deg
  • Speed @ 8.4V: 0.05sec/60 deg
  • Dimensions L x W x H: 40.3 x 20.2 x 38.7mm
  • Weight: 79g

Technical Details:
  • Operating Temperature: -10° to 50°C
  • Running Current (no load): 180mA @6.0V, 220mA @7.4V
  • Stall Current (at locked): 7500mA @6.0V, 9200mA @7.4V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 300 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Brushless
