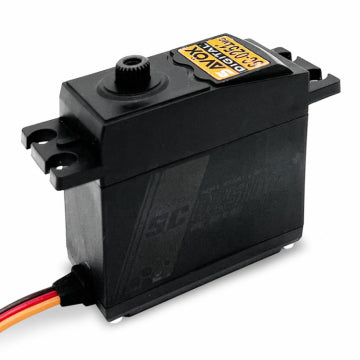

Savöx SC-0251MG PLUS - SC-0251MG Plus Servo 16Kg 0,18s Metal Gear

249,46 kr

Få prismatch på Savöx SC-0251MG PLUS - SC-0251MG Plus Servo 16Kg 0,18s Metal Gear

Har du fundet varen billigere hos en anden forhandler? Indsæt linket herunder, så får du hurtigt svar på, om vi kan matche prisen. Vi kigger på totalprisen — altså inkl. fragt, told og gebyrer — og varen skal helst være på lager hos dem. Vi matcher, hvis vi kan. Læs betingelserne her.

Lagerstatus:

På lager hos leverandør - bestil før kl. 12:15, leveret om 3-5 dage

Afhentning:

Ikke på lager

På lager? Så afsender vi om:

Dag-til-dag levering

Dag-til-dag levering
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
  • Levering 1–2 hverdage
  • Fragt fra 35 kr.
  • E-mærket webshop
  • Nem og sikker betaling
  • Kan bestilles til eller afhentes i Nørresundby
     Se butiksoplysninger

Beskrivelse

Savöx SC0251MGPLUS - Larger Standard Digital Servo - 0.18s/60° 16kg/cm @ 6V

The Savox SC-0251MGP is a high torque, metal-geared, digital servo which is suitable for many applications.

Features:
  • Soft Start
  • Sanwa SSR compatible
  • Metal gear train ensures durability under harsh situations
  • Slightly taller case design
  • Ideal for aircraft and some car applications

Specifications:
  • Torque @ 4.8v: 13kg/cm
  • Torque @ 6v: 16kg/cm
  • Speed @ 4.8v: 0.20s/60°
  • Speed @ 6v: 0.18s/60°
  • Dimensions L x W x H: 40.7 x 20 x 42.4mm
  • Weight: 61g
  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 300mA @4.8V, 350mA @6.0V
  • Stall Current (at locked): 2600mA @4.8V, 3200mA @6.0V
  • Idle Current: 5mA @4.8V, 6mA @6.0V
  • Wire Length: 300 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 120° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 164° (800 ? 2200 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed
