Savöx  |  Varenummer: SAV-SC0252MGPLUS Producent varenr.: SC-0252MG PLUS  |  EAN: 4710006994482

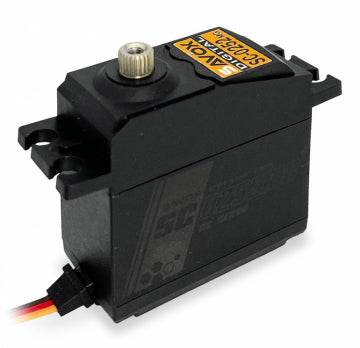

Savöx SC-0252MG PLUS - SC-0252MG Plus Servo 10,5Kg 0,19s Metal Gear

216,63 kr

Få prismatch på Savöx SC-0252MG PLUS - SC-0252MG Plus Servo 10,5Kg 0,19s Metal Gear

Har du fundet varen billigere hos en anden forhandler? Indsæt linket herunder, så får du hurtigt svar på, om vi kan matche prisen. Vi kigger på totalprisen — altså inkl. fragt, told og gebyrer — og varen skal helst være på lager hos dem. Vi matcher, hvis vi kan. Læs betingelserne her.

Lagerstatus:

På lager hos leverandør - bestil før kl. 12:15, leveret om 3-5 dage

Afhentning:

Ikke på lager

På lager? Så afsender vi om:

Dag-til-dag levering

Dag-til-dag levering
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
  • Levering 1–2 hverdage
  • Fragt fra 35 kr.
  • E-mærket webshop
  • Nem og sikker betaling
  • Kan bestilles til eller afhentes i Nørresundby
     Se butiksoplysninger

Beskrivelse

Savöx SC-0252MGPLUS - Standard Digital Servo with Soft Start 0.19s 10.5kg/cm @ 6.0V

The Savox SC-0252MG is a high torque, metal-geared, digital, standard servo. A great replacement for standard, plastic-geared servos with less torque.

Features:
  • Soft Start
  • Sanwa SSR compatibility
  • Metal gear train ensures durability under harsh situations
  • Higher torque output than standard servos
  • Ideal for 30-60 size aircraft, and some car applications

Specifications:
  • Torque @ 4.8v: 7.2kg/cm
  • Torque @ 6v: 10.5kg/cm
  • Speed @ 4.8v: 0.23s/60deg
  • Speed @ 6v: 0.19s/60deg
  • Dimensions: L40.7 x W20 x H39.4mm
  • Weight: 49g
  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 300mA @4.8V, 330mA @6.0V
  • Stall Current (at locked): 1400mA @4.8V, 1700mA @6.0V
  • Idle Current: 6mA @4.8V, 6mA @6.0V
  • Wire Length: 300 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 120° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 164° (800 ? 2200 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed
