Savöx  |  Varenummer: SAV-SC0253MGPLUS Producent varenr.: SC-0253MGPLUS  |  EAN: 42596942

Savöx SC-0253MGPLUS - SC-0253MG Servo 6Kg 0,15s Metal Gear

199,99 kr

Få prismatch på Savöx SC-0253MGPLUS - SC-0253MG Servo 6Kg 0,15s Metal Gear

Har du fundet varen billigere hos en anden forhandler? Indsæt linket herunder, så får du hurtigt svar på, om vi kan matche prisen. Vi kigger på totalprisen — altså inkl. fragt, told og gebyrer — og varen skal helst være på lager hos dem. Vi matcher, hvis vi kan. Læs betingelserne her.

Lagerstatus:

Ikke på lager

Afhentning:

Ikke på lager

På lager? Så afsender vi om:

Dag-til-dag levering

Dag-til-dag levering
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
  • Levering 1–2 hverdage
  • Fragt fra 35 kr.
  • E-mærket webshop
  • Nem og sikker betaling
  • Kan bestilles til eller afhentes i Nørresundby
     Se butiksoplysninger

Beskrivelse

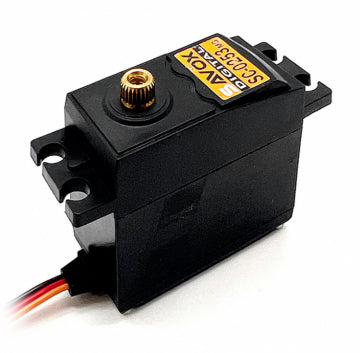

SAVÖX SC-0253MGPLUS - Metal-Geared Digital Standard Servo

The SC-0253MG Plus is a budget friendly, digital standard servo with metal gears and a bearing support for those wanting more than what a standard servo offers.

Features:
  • Soft Start
  • SSR compatible
  • DC motor
  • Strong metal gear train for added durability
  • Ideal for 1/10 cars and planes
  • Great replacement for standard servos with plastic gearing

Specifications:
  • Torque @ 4.8V: 4kg/cm
  • Torque @ 6V: 6kg/cm
  • Speed @ 4.8V: 0.17sec/60°
  • Speed @ 6V: 0.15sec/60°
  • Dimensions L x W x H: 40.7x20x37mm
  • Weight: 59g

Technical Details:
  • Operating Temperature: -10° to 50°C
  • Running Current (no load): 220mA @4.8V, 240mA @6.0V
  • Stall Current (at locked): 800mA @4.8 V, 1000mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 250 ± 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 120° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 164° (800 ? 2200 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed
