Savöx  |  Varenummer: SAV-SC0254MGPLUS

Savöx SC-0254MG PLUS - SC-0254MG Plus Servo 7,2Kg 0,14s Metal Gear

199,99 kr

Lagerstatus:

Ikke på lager

Afhentning:

Ikke på lager

Levering i morgen - Bestil inden:

Dag-til-dag levering

Dag-til-dag levering
  • Visa
  • Mastercard
  • MobilePay

Beskrivelse

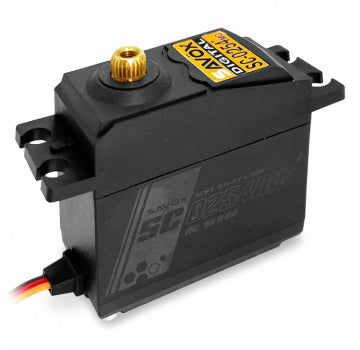

Savox SC-0254MGPLUS - Standard Sized Digital Servo with Soft Start 0.14sec 7.2kg/cm @ 6V

The Savox SC-0254MG Plus is a high torque, metal-geared, digital, standard servo. A great replacement for standard, plastic-geared servos with less torque.

Features:
  • Soft Start
  • Sanwa SSR compatible
  • Metal gear train ensures durability under harsh situations
  • Higher torque output than standard servos
  • Ideal for 30-60 size aircraft, and some car applications
  • Leading edge digital servo technology
  • Strong 3-Pole Brushed motor
  • Accurate and fast response
  • Fine resolution
  • Composite case
  • Ball bearings

Specifications:
  • Torque @ 4.8v: 6.9kg/cm
  • Torque @ 6v: 7.2kg/cm
  • Speed @ 4.8v: 0.19s/60deg
  • Speed @ 6v: 0.14s/60deg
  • Dimensions: L40.7 x W20 x H39.4mm
  • Weight: 49g
  • Operating Temperature: -10° to 50°C
  • Running Current (no load): 220mA @4.8V, 240mA @6.0V
  • Stall Current (at locked): 1300mA @4.8V, 1500mA @6.0V
  • Idle Current: 6mA @4.8V, 6mA @6.0V
  • Wire Length: 300 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 120° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 164° (800 ? 2200 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed

Forsendelse

Vi benytter GLS.
Her er der følgende muligheder:

  • Levering til pakkeshop, fast rate uanset vægt og beløb: 47,00 kr.
  • Levering direkte til kundens adresse: 0-5 kg: 69 kr, 5-99 kg: 89 kr.

Leveringstid: 1 dag.
Der afsendes på bestillingsdagen frem til 17.00. Leveringstiden er gældende for både privat- og erhvervsadresser.
