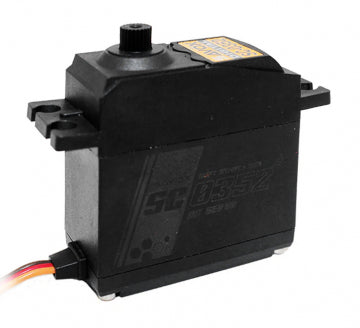

Savöx SC-0352 PLUS - SC-0352 Plus Servo 6,5Kg 0,11s

150,05 kr

Lagerstatus:

På lager hos leverandør - bestil nu, leveres den 16 maj (7 dage)

Afhentning:

Der er 0 styk på lager - Nørresundby

Savöx SC-0352 PLUS - SC-0352 Plus Servo 6,5Kg 0,11s er restordret og sendes så snart det er tilbage på lager.

Levering i morgen - Bestil inden:

Dag-til-dag levering

Dag-til-dag levering
  • Visa
  • Mastercard
  • MobilePay

Beskrivelse

SAVÖX SC-0352PLUS - Plastic-Geared Digital Standard Servo

The Savox SC-0352 Plus is considered a 'standard' servo, but outperforms other standard servos with more torque and dual bearing support.

Features:
  • Soft Start
  • SSR compatible
  • Dual ball bearing support for precision and gear support
  • Industrial plastic gear train is quiet and smooth
  • More torque than other standard servos

Specifications:
  • Torque @ 4.8V: 4.2kg/cm
  • Torque @ 6V: 6.5kg/cm
  • Speed @ 4.8V: 0.14 sec/60 deg
  • Speed @ 6V: 0.11 sec/60 deg
  • Dimensions L x W x H: 40.7 x 20.0 x 39.4mm
  • Weight: 42g

Technical Details:
  • Operating Temperature: -10° - 50°C
  • Running Current (no load): 180mA @4.8V, 240mA @6.0V
  • Stall Current (at locked): 1300mA @4.8V, 1500mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 250 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 120° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 164° (800 ? 2200 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed
