Savöx  |  Varenummer: SAV-SC1251MGPLUS Producent varenr.: SC-1251MG PLUS

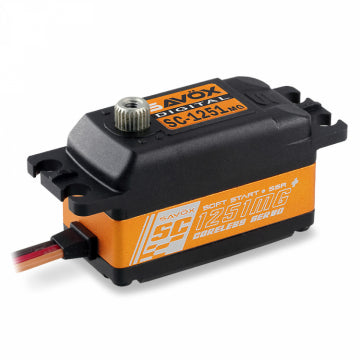

Savöx SC-1251MG PLUS - SC-1251MG Plus Servo 9Kg 0,09s Alu Coreless Metal Gear Low

435,59 kr

Få prismatch på Savöx SC-1251MG PLUS - SC-1251MG Plus Servo 9Kg 0,09s Alu Coreless Metal Gear Low

Har du fundet varen billigere hos en anden forhandler? Indsæt linket herunder, så vender vi hurtigst muligt tilbage. Læs betingelserne her.

Lagerstatus:

På lager hos leverandør - bestil før kl. 12:00, leveret om 3-4 dage

Afhentning:

Ikke på lager

På lager? Så afsender vi om:

Dag-til-dag levering

Dag-til-dag levering
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
  • Levering 1–2 hverdage
  • Fri fragt ved 600 kr.
  • E-mærket webshop
  • Nem og sikker betaling
  • Kan bestilles til eller afhentes i Nørresundby
     Se butiksoplysninger

Beskrivelse

SAVÖX SC-1251MGPLUS - Metal-Geared Digital Low-Profile Servo - PLUS/V2

The SC-1251MG Plus is now updated with new software and is a high speed, low profile servo which combines leading edge technology with super high 12 bit (4096) resolution.

Features:
  • NEW! Softstart Function
  • NEW! Sanwa SSR compatible
  • Metal gear train ensures durability under harsh situations
  • Ideal for 1/10 on road vehicles and some boat applications
  • Aluminum case provides cooler operating temperatures

Specifications:
  • Voltage range: 4.8-6.6V
  • Torque @ 4.8V: 7kg/cm
  • Torque @ 6V: 9kg/cm
  • Speed @ 4.8V: 0.10 sec/60 deg
  • Speed @ 6V: 0.09 sec/60 deg
  • Dimensions L x W x H: 40.3 x 20.2 x 25.4mm
  • Weight: 44.5g

Technical Details:
  • Operating Temperature: -10° to 50°C
  • Running Current (no load): 150mA @4.8V, 180mA @6.0V
  • Stall Current (at locked): 2000mA @4.8V, 3000mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 300 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 90° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 950 ? 2050 µ second
  • Maximum Travel: Aprox. 160° (700 ? 2300 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Coreless
