Savöx  |  Varenummer: SAV-SC1252MGPLUS

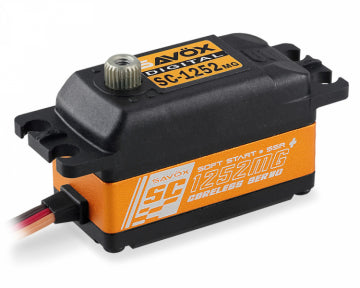

Savöx SC-1252MG PLUS - SC-1252MG Plus Servo 7Kg 0,07s Alu Coreless Metal Gear Low

425,46 kr

Lagerstatus:

På lager hos leverandør - bestil nu, leveres den 16 maj (7 dage)

Afhentning:

Der er 0 styk på lager - Nørresundby

Savöx SC-1252MG PLUS - SC-1252MG Plus Servo 7Kg 0,07s Alu Coreless Metal Gear Low er restordret og sendes så snart det er tilbage på lager.

Levering i morgen - Bestil inden:

Dag-til-dag levering

Dag-til-dag levering
  • Visa
  • Mastercard
  • MobilePay

Beskrivelse

SAVÖX SC-1252MG Plus - Metal-Geared High-Speed Digital Low-Profile Servo V2

The SC-1252MG+ is a high speed, low profile servo which combines leading edge technology with super high 12 bit (4096) resolution. Ideal for 1/10 on-road cars where space is limited and speed is desired.

Features:
  • Metal gear train ensures durability under harsh situations
  • Ideal for 1/10 on road vehicles
  • Aluminum case provides cooler operating temperatures
  • New: SSR compatible
  • New: Soft Start

Specifications:
  • Voltage range: 4.8-6.6V
  • Torque @ 4.8V: 4.5kg/62.5oz-in
  • Torque @ 6V: 7kg/97.2oz-in
  • Speed @ 4.8V: 0.08 sec/60 deg
  • Speed @ 6V: 0.07 sec/60 deg
  • Dimensions L x W x H: 40.8 x 20.2 x 25.4mm
  • Weight: 44.5g

Technical Details:
  • Operating Temperature: -10° to 50°C
  • Running Current (no load): 150mA @4.8V, 180mA @6.0V
  • Stall Current (at locked): 2000mA @4.8V, 3000mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 300 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 90° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 950 ? 2050 µ second
  • Maximum Travel: Appx 160° (700 ? 2300 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Coreless
