Beskrivelse

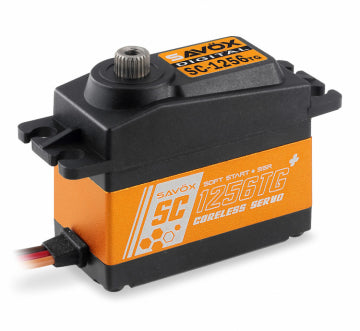

SAVÖX SC-1256TG Plus - Titanium-Geared Digital Coreless Standard-Sized Servo - V2

The SC1256TG+ servo is a great servo for those looking to replace a standard servo with one that has superior specifications.

Features:
  • Titanium gears (& aluminium) ensure long life, durability and lighter weight
  • Aluminum middle case to help with cooler operating temperatures
  • Great replacement for RTR servos and other 1/10 off road vehicles
  • SSR (Soft Start)

Specifications:
  • Torque @ 4.8V: 16kg/cm
  • Speed @ 4.8V: 0.18 sec/60 deg
  • Torque @ 6V: 20kg/cm
  • Speed @ 6V: 0.15 sec/60 deg
  • Dimensions L x W x H: 40.3 x 20.2 x 37.2mm
  • Weight: 64g

Technical Details:
  • Operating Temperature: -10° to 50°C
  • Running Current (no load): 100mA @4.8V, 120mA @6.0V
  • Stall Current (at locked): 4000mA @4.8V, 5000mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 250 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Coreless
