Savöx  |  Varenummer: SAV-SH0253PLUS

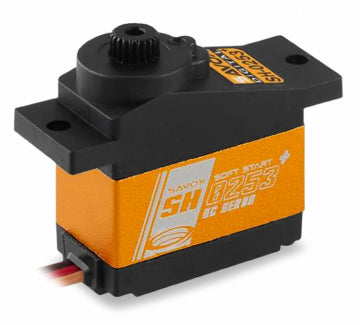

Savöx SH-0253 PLUS - SH-0253 Plus Servo 2,2Kg 0,09s Alu Micro

142,48 kr

Lagerstatus:

På lager hos leverandør - order before 11:00, leveres den 16 maj (7 dage)

Afhentning:

Der er 0 styk på lager - Nørresundby

Savöx SH-0253 PLUS - SH-0253 Plus Servo 2,2Kg 0,09s Alu Micro er restordret og sendes så snart det er tilbage på lager.

Levering i morgen - Bestil inden:

Dag-til-dag levering

Dag-til-dag levering
  • Visa
  • Mastercard
  • MobilePay

Beskrivelse

Savöx SH0253PLUS - Micro Digital Servo with Soft Start, 0.09s/2.2kg/cm @6V

The Savox SH-0253 Plus micro, digital servo has a nice balance of torque and speed in addition to using a combination of industrial plastic and metal gears for added durabilty and smoothness.

Features:
  • Soft Start
  • Sanwa SSR compatibility
  • Aluminum middle case allows for cooler operating temperatures
  • Industrial plastic and metal gear train ensures durability and longevity
  • Ideal for small planes, and 450 size helicopters

Specifications:
  • Torque @ 4.8v - 1.8kg/cm
  • Torque @ 6v - 2.2kg/cm
  • Speed @ 4.8v - 0.13 sec/60 deg
  • Speed @ 6v - 0.09 sec/60 deg
  • Dimensions: L22.8 x W12 x H25.4mm
  • Weight: 13.6g
  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 150mA @4.8V, 180mA @6.0V
  • Stall Current (at locked): 1000mA @4.8V, 1200mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 250 ± 5mm
  • Output Gear Spline: 21 Tooth
  • Bearings: 1BB
  • Operating Travel: 90° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 700 ? 2300 µ second
  • Maximum Travel: Appx 150° (700 ? 2300 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed
