Beskrivelse

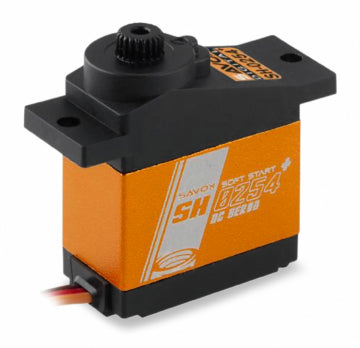

SAVÖX SH-0254PLUS - Digital Micro Servo

The Savox SH-0254-PLUS micro, digital servo has plenty of torque and uses a combination of industrial plastic and metal gears for added durabilty and smoothness.

Features:
  • New: Soft Start
  • New: Sanwa SSR compatible
  • Aluminum middle case allows for cooler operating temperatures
  • Industrial plastic and metal gear train ensures durability and longevity
  • Ideal for small planes and 450 size helicopters

Specifications:
  • Torque @4.8V: 3.1kg/cm
  • Torque @6V: 3.9kg/cm
  • Speed @4.8V: 0.16 sec/60 deg
  • Speed @6V: 0.13 sec/60 deg
  • Dimensions L x W x H: 22.8 x 12.0 x 29.4mm
  • Weight: 15.8g

Technical Details:
  • Operating Temperature: -10° to 50°C
  • Running Current (no load): 180mA @4.8V, 240mA @6.0V
  • Stall Current (at locked): 1200mA @4.8V, 1400mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 250 ± 5mm
  • Output Gear Spline: 21 Tooth
  • Bearings: 1BB
  • Operating Travel: 90° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 750 ? 2250 µ second
  • Maximum Travel: Appx 145° (750 ? 2250 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed


Note: This servo can be upgraded to metal gears by using the gear set for SH0255MG.
