Savöx  |  Varenummer: SH-0255MG PLUS Producent varenr.: SH-0255MG PLUS  |  EAN: 4710006994192

Savöx SH-0255MG PLUS - SH-0255MG Plus Servo 3,9Kg 0,13s Alu Metal Gear Micro

169,25 kr

Få prismatch på Savöx SH-0255MG PLUS - SH-0255MG Plus Servo 3,9Kg 0,13s Alu Metal Gear Micro

Har du fundet varen billigere hos en anden forhandler? Indsæt linket herunder, så får du hurtigt svar på, om vi kan matche prisen. Vi kigger på totalprisen — altså inkl. fragt, told og gebyrer — og varen skal helst være på lager hos dem. Vi matcher, hvis vi kan. Læs betingelserne her.

Lagerstatus:

Der er 4 styk på lager hos leverandør - bestil nu, leveret om 3-5 dage

Afhentning:

Ikke på lager

På lager? Så afsender vi om:

Dag-til-dag levering

Dag-til-dag levering
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
  • Levering 1–2 hverdage
  • Fragt fra 35 kr.
  • E-mærket webshop
  • Nem og sikker betaling
  • Kan bestilles til eller afhentes i Nørresundby
     Se butiksoplysninger

Beskrivelse

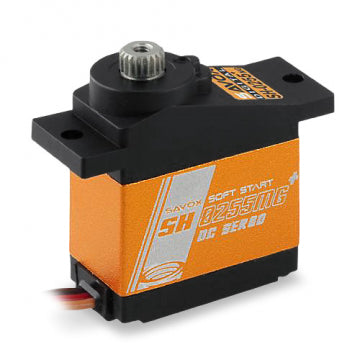

SAVÖX SH-0255MG PLUS - Metal-Geared Digital Micro Servo - V2

The Savox SH-0255MG+ micro, metal-gear, digital servo has plenty of torque to match much larger standard size servos and outperform other competitive micro-size servos.

Features:
  • Metal gear train ensures durability and longevity
  • Aluminum middle case allows for cooler operating temperatures
  • Ideal for small planes and 450 size helicopters
  • Soft Start

Specifications:
  • Torque @4.8V: 3.1kg/cm
  • Torque @6V: 3.9kg/cm
  • Speed @4.8V: 0.16 sec/60 deg
  • Speed @6V: 0.13 sec/60 deg
  • Dimensions L x W x H: 22.8 x 12.0 x 29.4mm
  • Weight: 15.8g

Technical Details:
  • Operating Temperature: -10° to 50°C
  • Running Current (no load): 180mA @4.8V, 240mA @6.0V
  • Stall Current (at locked): 1200mA @4.8V, 1400mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 250 ± 5mm
  • Output Gear Spline: 21 Tooth
  • Bearings: 1BB
  • Operating Travel: 90° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 750 ? 2250 µ second
  • Maximum Travel: Appx 145° (750 ? 2250 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed

Forsendelse

Vi benytter GLS:

Pakkeshop: fra 35 kr.
Direkte til adresse: fra 59 kr.
Erhverv: fra 49 kr.

Savöx

Savöx SH-0255MG PLUS - SH-0255MG Plus Servo 3,9Kg 0,13s Alu Metal Gear Micro

169,25 kr

SAVÖX SH-0255MG PLUS - Metal-Geared Digital Micro Servo - V2

The Savox SH-0255MG+ micro, metal-gear, digital servo has plenty of torque to match much larger standard size servos and outperform other competitive micro-size servos.

Features:
  • Metal gear train ensures durability and longevity
  • Aluminum middle case allows for cooler operating temperatures
  • Ideal for small planes and 450 size helicopters
  • Soft Start

Specifications:
  • Torque @4.8V: 3.1kg/cm
  • Torque @6V: 3.9kg/cm
  • Speed @4.8V: 0.16 sec/60 deg
  • Speed @6V: 0.13 sec/60 deg
  • Dimensions L x W x H: 22.8 x 12.0 x 29.4mm
  • Weight: 15.8g

Technical Details:
  • Operating Temperature: -10° to 50°C
  • Running Current (no load): 180mA @4.8V, 240mA @6.0V
  • Stall Current (at locked): 1200mA @4.8V, 1400mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 250 ± 5mm
  • Output Gear Spline: 21 Tooth
  • Bearings: 1BB
  • Operating Travel: 90° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 750 ? 2250 µ second
  • Maximum Travel: Appx 145° (750 ? 2250 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed
