Savöx  |  Varenummer: SH-0257MGPLUS Producent varenr.: SH-0257MG PLUS  |  EAN: 4710006994277

Savöx SH-0257MG PLUS - SH-0257MG Plus Servo 2,2Kg 0,09s Alu Metal Gear Micro

160,29 kr

Få prismatch på Savöx SH-0257MG PLUS - SH-0257MG Plus Servo 2,2Kg 0,09s Alu Metal Gear Micro

Har du fundet varen billigere hos en anden forhandler? Indsæt linket herunder, så får du hurtigt svar på, om vi kan matche prisen. Vi kigger på totalprisen — altså inkl. fragt, told og gebyrer — og varen skal helst være på lager hos dem. Vi matcher, hvis vi kan. Læs betingelserne her.

Lagerstatus:

Ikke på lager

Afhentning:

Ikke på lager

På lager? Så afsender vi om:

Dag-til-dag levering

Dag-til-dag levering
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
  • Levering 1–2 hverdage
  • Fragt fra 35 kr.
  • E-mærket webshop
  • Nem og sikker betaling
  • Kan bestilles til eller afhentes i Nørresundby
     Se butiksoplysninger

Beskrivelse

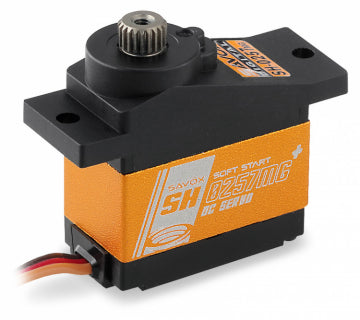

SAVÖX SH-0257MGPLUS - Metal-Geared Micro Servo

The Savox SH-0257MG-PLUS metal-gear, high-torque, digital, micro servo has more output torque than larger servos without sacrificing speed.

Features:
  • New: Soft Start
  • New: Sanwa SSR compatible
  • Metal gear train ensures durability and longevity
  • Aluminum middle case allows for cooler operating temperatures
  • Ideal for small planes and 450 size helicopters

Specifications:
  • Torque @4.8V: 1.8kg/cm
  • Torque @6V: 2.2kg/cm
  • Speed @4.8V: 0.13 sec/60 deg
  • Speed @6V: 0.09 sec/60 deg
  • Dimensions L x W x H: 22.8 x 12.0 x 25.4mm
  • Weight: 14g

Technical Details:
  • Operating Temperature: -10° to 50°C
  • Running Current (no load): 150mA @4.8V, 180mA @6.0V
  • Stall Current (at locked): 1000mA @4.8V, 1200mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 250 ± 5mm
  • Output Gear Spline: 21 Tooth
  • Bearings: 1BB
  • Operating Travel: 90° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 700 ? 2300 µ second
  • Maximum Travel: Appx 150° (700 ? 2300 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed

Forsendelse

Vi benytter GLS:

Pakkeshop: fra 35 kr.
Direkte til adresse: fra 59 kr.
Erhverv: fra 49 kr.

Savöx

Savöx SH-0257MG PLUS - SH-0257MG Plus Servo 2,2Kg 0,09s Alu Metal Gear Micro

160,29 kr

SAVÖX SH-0257MGPLUS - Metal-Geared Micro Servo

The Savox SH-0257MG-PLUS metal-gear, high-torque, digital, micro servo has more output torque than larger servos without sacrificing speed.

Features:
  • New: Soft Start
  • New: Sanwa SSR compatible
  • Metal gear train ensures durability and longevity
  • Aluminum middle case allows for cooler operating temperatures
  • Ideal for small planes and 450 size helicopters

Specifications:
  • Torque @4.8V: 1.8kg/cm
  • Torque @6V: 2.2kg/cm
  • Speed @4.8V: 0.13 sec/60 deg
  • Speed @6V: 0.09 sec/60 deg
  • Dimensions L x W x H: 22.8 x 12.0 x 25.4mm
  • Weight: 14g

Technical Details:
  • Operating Temperature: -10° to 50°C
  • Running Current (no load): 150mA @4.8V, 180mA @6.0V
  • Stall Current (at locked): 1000mA @4.8V, 1200mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 250 ± 5mm
  • Output Gear Spline: 21 Tooth
  • Bearings: 1BB
  • Operating Travel: 90° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 700 ? 2300 µ second
  • Maximum Travel: Appx 150° (700 ? 2300 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed
