Savöx  |  Varenummer: SH-0263MG PLUS Producent varenr.: SH-0263MG PLUS  |  EAN: 4710006994307

Savöx SH-0263MG PLUS - SH-0263MG Plus Servo 2,2Kg 0,10s Alu Metal Gear Micro

178,22 kr

Få prismatch på Savöx SH-0263MG PLUS - SH-0263MG Plus Servo 2,2Kg 0,10s Alu Metal Gear Micro

Har du fundet varen billigere hos en anden forhandler? Indsæt linket herunder, så får du hurtigt svar på, om vi kan matche prisen. Vi kigger på totalprisen — altså inkl. fragt, told og gebyrer — og varen skal helst være på lager hos dem. Vi matcher, hvis vi kan. Læs betingelserne her.

Lagerstatus:

Der er 1 styk på lager - bestil før kl. 15:00, leveret d. 10 sep. (2 dage)

Afhentning:

Der er 1 styk på lager - Nørresundby

På lager? Så afsender vi om:

Dag-til-dag levering

Dag-til-dag levering
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
  • Levering 1–2 hverdage
  • Fragt fra 35 kr.
  • E-mærket webshop
  • Nem og sikker betaling
  • Kan bestilles til eller afhentes i Nørresundby
     Se butiksoplysninger

Beskrivelse

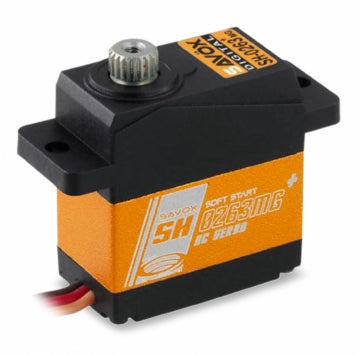

SAVÖX SH-0263MGPLUS - Metal-Geared Micro Servo

The Savox SH-0263MG-PLUS metal-gear, digital, micro servo is quick and built tough.

Features:
  • New: Soft Start
  • New: Sanwa SSR compatible
  • Metal gear train ensures durability and longevity
  • Aluminum middle case allows for cooler operating temperatures
  • Ideal for small planes and 450 size helicopters
  • Dual ball bearing support

Specifications:
  • Torque @4.8V: 1.8kg/cm
  • Torque @6V: 2.2kg/cm
  • Speed @4.8V: 0.13 sec/60 deg
  • Speed @6V: 0.10 sec/60 deg
  • Dimensions L x W x H: 22.8 x 12.0 x 25.4mm
  • Weight: 15g

Technical Details:
  • Operating Temperature: -10° to 50°C
  • Running Current (no load): 60mA @4.8V, 80mA @6.0V
  • Stall Current (at locked): 550mA @4.8V, 700mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 250 ± 5mm
  • Output Gear Spline: 21 Tooth
  • Bearings: 2BB
  • Operating Travel: 90° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 700 ? 2300 µ second
  • Maximum Travel: Appx 150° (700 ? 2300 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed
