Savöx  |  Varenummer: SAV-SH1290MGPLUS

Savöx SH-1290MG PLUS - SH-1290MG Plus Servo 5Kg 0,05s Alu Coreless Metal Gear

430,00 kr

Lagerstatus:

På lager hos leverandør - bestil før 11:00, leveret d. 03 sep. (6 dage)

Afhentning:

Ikke på lager

Levering i morgen - Bestil inden:

Dag-til-dag levering

Dag-til-dag levering
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling

Beskrivelse

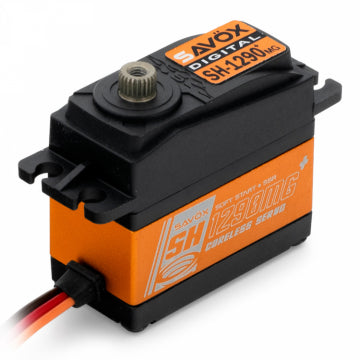

SAVÖX SH-1290MGPLUS - Metal-Geared Super-Fast Standard-Sized Servo

The Savox SH-1290MG Plus is a super-speed, metal-gear, digital servo that is extremely fast.

Features:
  • Soft Start
  • SSR compatible
  • Coreless motor
  • Metal gear train ensures durability and longevity
  • Extremely fast for quick response
  • Aluminum middle case allows for cooler operating temperatures
  • Ideal as a rudder servo on 500, 600, and 700 class helicopters
  • Dual ball bearing support

Specifications:
  • Torque @4.8V: 4kg/cm
  • Torque @6V: 5kg/cm
  • Speed @4.8V: 0.06 sec/60 deg
  • Speed @6V: 0.05 sec/60 deg
  • Dimensions L x W x H: 40.3 x 20.2 x 37.2mm
  • Weight: 56.4g

Technical Details:
  • Operating Temperature: -10° to 50°C
  • Running Current (no load): 200mA @4.8V, 250mA @6.0V
  • Stall Current (at locked): 2400mA @4.8V, 3000mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 300 ± 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 ? 2000 µ second)
  • Neutral Position: 1520 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 154° (800 ? 2200 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Coreless
