Savöx  |  Varenummer: SAV-SV0235MGPLUS Producent varenr.: SV-0235MG PLUS  |  EAN: 48134734

Savöx SV-0235MG PLUS - SV-0235MG Plus Servo 35Kg 0,15s HV Alu Metal Gear Giant

503,11 kr

Få prismatch på Savöx SV-0235MG PLUS - SV-0235MG Plus Servo 35Kg 0,15s HV Alu Metal Gear Giant

Har du fundet varen billigere hos en anden forhandler? Indsæt linket herunder, så får du hurtigt svar på, om vi kan matche prisen. Vi kigger på totalprisen — altså inkl. fragt, told og gebyrer — og varen skal helst være på lager hos dem. Vi matcher, hvis vi kan. Læs betingelserne her.

Lagerstatus:

På lager hos leverandør - bestil nu, leveret om 4-6 dage

Afhentning:

Ikke på lager

På lager? Så afsender vi om:

Dag-til-dag levering

Dag-til-dag levering
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
  • Levering 1–2 hverdage
  • Fragt fra 35 kr.
  • E-mærket webshop
  • Nem og sikker betaling
  • Kan bestilles til eller afhentes i Nørresundby
     Se butiksoplysninger

Beskrivelse

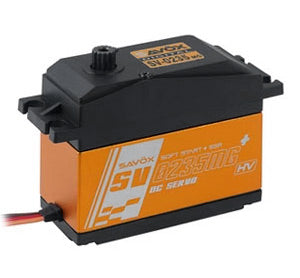

SAVÖX SV-0235MGPLUS - Metal-Geared Giant-Scale High Voltage Servo

The SW0235MG Plus is a metal-geared, and digital servo. It is a fast large scale servo and capable of operating on high voltage.

Features:
  • Soft Start
  • SSR compatible
  • High Voltage
  • Ideal for 1/5 scale off road and large scale aircraft applications
  • Strong metal gear train for added durability
  • Good torque and speed for a nice balance

Specifications:
  • Torque @6V: 28kg/cm
  • Torque @7.4V: 35kg/cm
  • Speed @6V: 0.18 sec/60 deg
  • Speed @7.4V: 0.15 sec/60 deg
  • Dimensions L x W x H: 65.8 x 30.0 x 57.4mm
  • Weight: 200g

Technical Details:
  • Operating Temperature: -10° to 50°C
  • Running Current (no load): 150mA @6.0V, 180mA @7.4V
  • Stall Current (at locked): 7500mA @6.0V, 9000mA @7.4V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 200 ± 5mm
  • Output Gear Spline: 15 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed
